Mfr Part #:

PMCM6501VNEZ

Name: PMCM6501VNEZ
Brand: Nexperia USA Inc.
SKU: PMCM6501VNEZ

Mfr Name: Nexperia USA Inc.

Description:

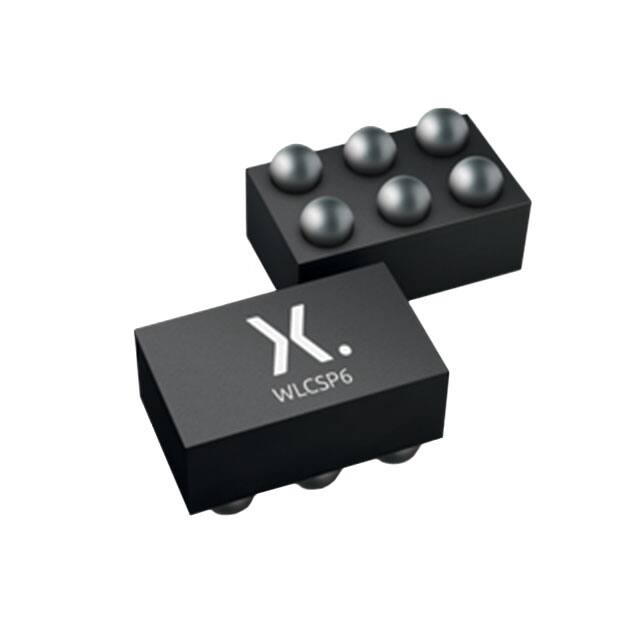

MOSFET N-CH 12V 7.3A 6WLCSP

Stock on Request

PMCM6501VNEZ Description

Short technical summary and product information.

MOSFET N-CH 12V 7.3A 6WLCSP

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	Nexperia USA Inc.
Current	7.3A (Ta)
Drain to Source Voltage (Vdss)	12 V
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	24 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds	920 pF @ 6 V
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Power Dissipation (Max)	556mW (Ta), 12.5W (Tc)
Rds On (Max) @ Id, Vgs	18mOhm @ 3A, 4.5V
Supplier Device Package	6-WLCSP (1.48x0.98)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	±8V
Vgs(th) (Max) @ Id	900mV @ 250µA
