| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request | |
|
195 pcs
|
195 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Type | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Enclosure Material | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Resistance to Soldering Heat | |
| Shielding | |
| Storage Temperature | |
| Supplier Device Package | |
| Terminal Material | |
| Tolerance | |
| Width | |
| inductance (Typical @ 2.52 MHz) |

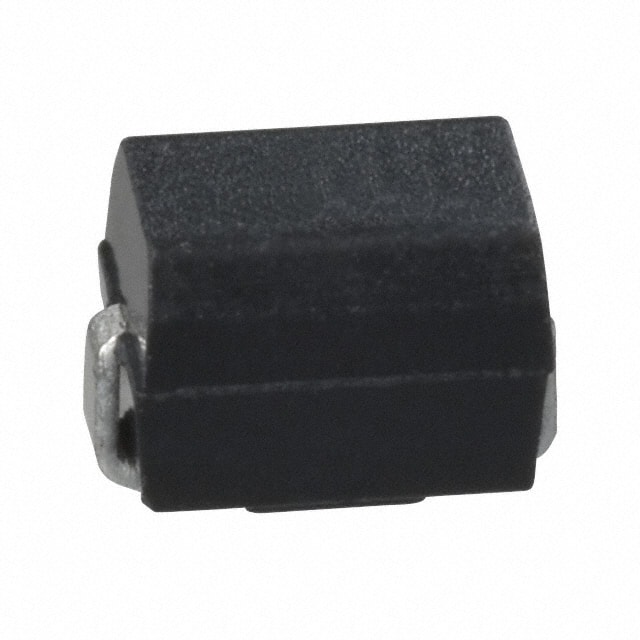

The Bourns PM1812-470J-RC is an unshielded SMT chip inductor from the PM1812 series. It offers a precise inductance of 47 µH with a tight tolerance of ±5%, making it suitable for various electronic applications.
This inductor is designed for surface mounting with an 1812 (4532 Metric) package size. It has a current rating of 140mA and a maximum DC resistance of 5 Ohms. The operating temperature range is -40°C to +125°C, and it is constructed with a ferrite core, copper wire coil, and epoxy resin enclosure.
Key electrical characteristics include a Q factor of 50 at 2.52MHz and a frequency rating of 10MHz. The inductor is designed for high resistance to heat and humidity, as well as mechanical shock and pressure, ensuring reliable performance in demanding environments. Its accurate dimensions facilitate automatic surface mounting processes.
Applications for this component include DC/DC converters, power supplies, and general use where stable inductance and current handling are required. The RoHS 3 compliant status indicates adherence to environmental regulations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 47 µH.
The current rating is 140 mA.
The maximum DC resistance is 5 Ohms.
The operating temperature range is -40°C to +125°C.
The package is 1812 (4532 Metric).
