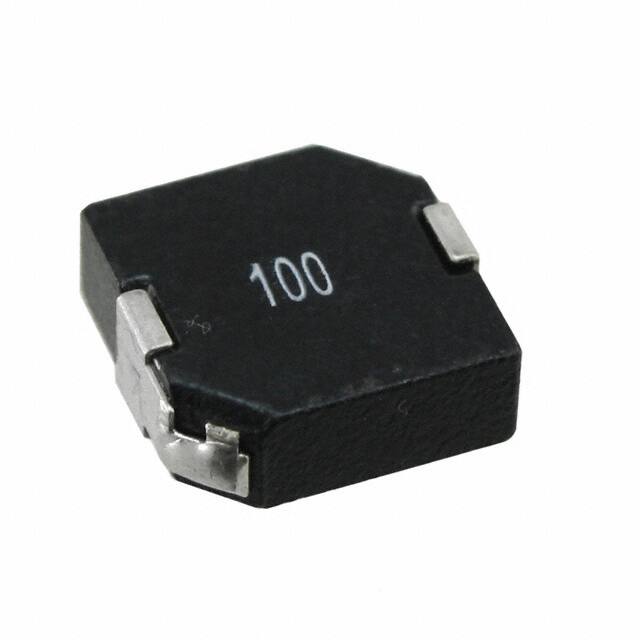

This Bourns PM13560S-100M-RC is a fixed inductor from the PM13560S series, designed with a shielded drum core and wirewound construction. It provides an inductance value of 10 µH with a tolerance of ±20% and can handle a current rating of up to 9A, with a saturation current of 16A.
The inductor features a low DC resistance (DCR) of 25.5mOhm maximum and operates across a wide temperature range from -55°C to 150°C. Its shielded design helps minimize electromagnetic interference.
Packaged for surface mounting, this component is supplied in a nonstandard package size. The material used for the core is iron, and the terminals are Cu/Sn. It is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.
Key electrical characteristics include a test frequency of 100 KHz for inductance and DCR measurements. It also withstands resistance to soldering heat up to +260°C for 10 seconds.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the PM13560S-100M-RC is 10 µH.
The current rating for the PM13560S-100M-RC is 9 A.
The DC resistance (DCR) of the PM13560S-100M-RC is a maximum of 25.5mOhm.
The operating temperature range for the PM13560S-100M-RC is -55°C to 150°C.
The PM13560S-100M-RC is designed for surface mounting.
The PM13560S-100M-RC comes in a nonstandard package.
The standard package quantity for the PM13560S-100M-RC is 500 pieces per 13-inch reel.
