| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Dimensions | |
| For Use With | |
| Input Voltage |

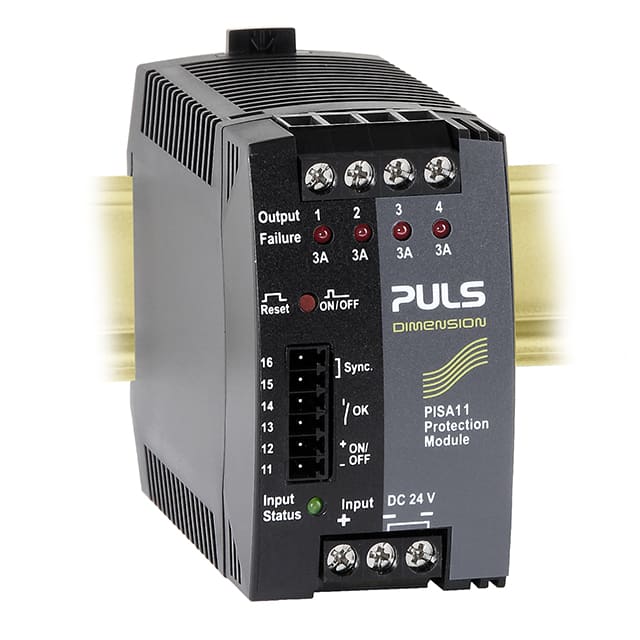

The PULS PISA11.403 is part of the PISA product family, designed to protect DC 24V load circuits from over-current and short-circuits. This electronic circuit breaker functions as a module load monitor for power converters.
Key specifications include a nominal DC output voltage of 24V and a current rating of 4A per channel. The device accepts an input voltage range of 18-30V DC. It features 4 output channels, with each channel capable of handling up to 1A. The unit has dimensions of 45mm in width, 75mm in height, and 91mm in depth.
Designed for easy mounting on a DIN rail, the PISA11.403 is suitable for various industrial applications requiring reliable DC power distribution and protection. Its compact size and robust design make it a practical choice for space-constrained control cabinets.
The nominal DC output voltage is 24V.
The input voltage range is 18-30V DC.
It has 4 output channels.
Each output channel is rated for 1A.
The dimensions are 45mm x 75mm x 91mm.
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
