| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Dimensions | |
| For Use With | |
| Input Voltage | |
| Output Current |

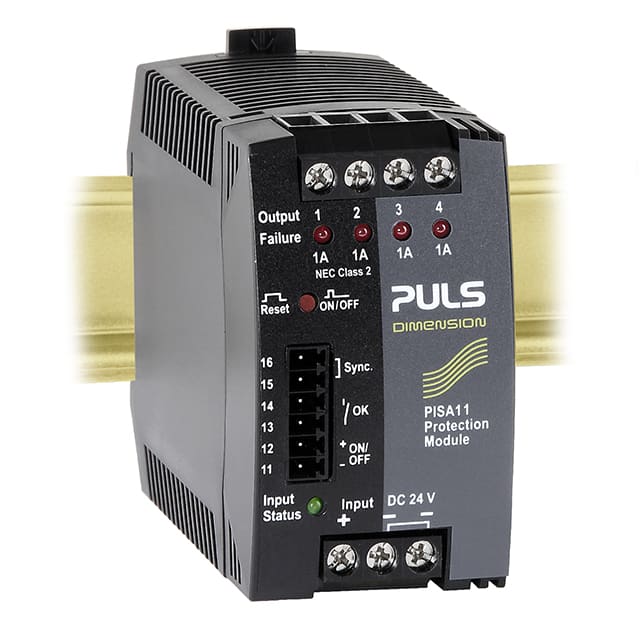

The PISA11 series from PULS, LP offers cost-optimized electronic circuit breakers for DC 24V systems. The PISA11.401 model provides one input and four current-controlled output channels, each rated at 1A. This compact design ensures a sufficient supply voltage for critical loads, even in the event of a fault, and protects small cable sizes against overload.
With an input voltage range of 18-30V DC and a nominal output voltage of 24V DC, the PISA11.401 is suitable for various industrial applications. Its dimensions are 45mm in width, 75mm in height, and 91mm in depth. The series also includes NEC Class 2 versions for specific circuit requirements.
These electronic circuit breakers are designed to enhance system reliability by isolating faults and preventing damage to sensitive equipment. Their cost-efficient nature makes them an attractive option for applications where robust protection is required without excessive cost.
The PISA11.401 provides a nominal DC output voltage of 24V.
The input voltage range for the PISA11.401 is 18-30V DC.
The PISA11.401 has four output channels, each rated at 1A.
The dimensions of the PISA11.401 are 45mm in width, 75mm in height, and 91mm in depth.
Yes, the PISA11.401 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the PISA11.401 is 1 Unlimited.
The PISA11.401 is REACH Unaffected.
