| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

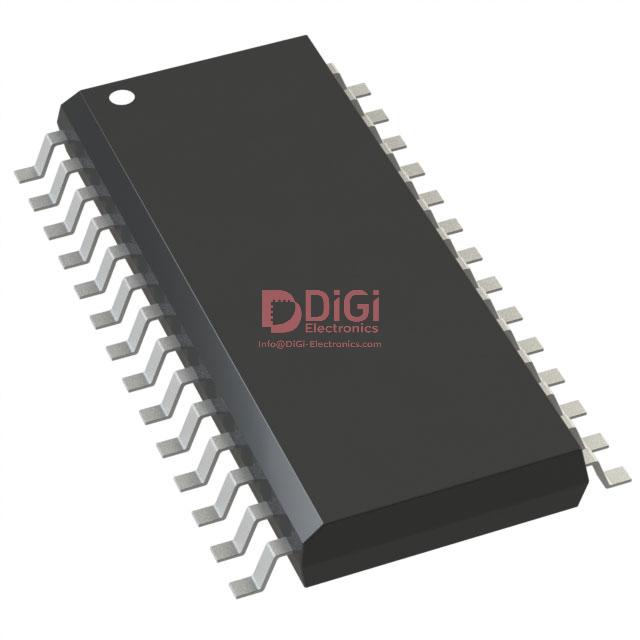

The PIC18F25K80-E/SO from Microchip Technology is an 8-bit microcontroller designed for embedded applications. It features a robust 32KB of FLASH program memory, capable of storing 16K x 16 words, and operates at speeds up to 64MHz.
This microcontroller offers a comprehensive set of peripherals including ECANbus, I2C, LINbus, SPI, and UART/USART, along with Brown-out Detect/Reset, LVD, POR, PWM, and WDT. It provides 24 I/O pins and supports a wide supply voltage range from 1.8V to 5.5V. The device includes an 8-channel, 12-bit Analog-to-Digital converter.
Packaged in a 28-SOIC (0.295", 7.50mm Width) format, the PIC18F25K80-E/SO is designed for surface mount applications. Its operating temperature range is -40°C to 125°C (TA), making it suitable for various environmental conditions. The internal oscillator type simplifies design by eliminating the need for external clock components.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.8V to 5.5V.
It is available in a 28-SOIC package with a width of 0.295 inches (7.50mm).
The operating temperature range is -40°C to 125°C (TA).
It has 32KB of FLASH program memory, organized as 16K x 16 words.
It supports ECANbus, I2C, LINbus, SPI, and UART/USART.
