| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,696 pcs
|
1696 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Frequency | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Interface | |
| Lead Spacing | |
| Memory | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Supply Voltage | |
| Voltage |

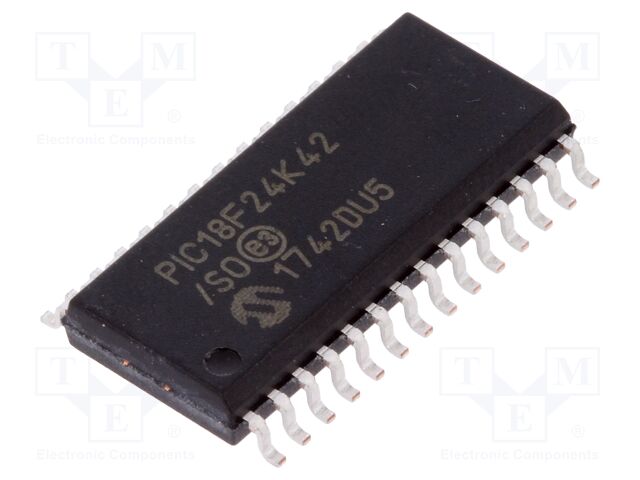

The PIC18F24K42-I/SO is an 8-bit microcontroller from Microchip Technology, part of the PIC18 family. It offers 16KB of Flash program memory and operates at a clock frequency of up to 64MHz. The device supports a wide supply voltage range of 2.3V to 5.5V.
Key electrical features include 25 input/output pins, 1KB of SRAM, and 256 bytes of EEPROM. It is equipped with various peripherals such as Brown-out Reset (BOR), DMA, HLVD, POR, PWM, and WDT. The microcontroller also includes 24 capacitive channels for touch sensing and multiple timers, including three 8-bit and four 16-bit timers.
This microcontroller is housed in a 28-SOIC (0.295", 7.50mm Width) surface mount package. Its operating temperature range is -40°C to 85°C. Connectivity options include I2C, LINbus, SPI, and UART/USART interfaces, making it suitable for a variety of embedded applications.
The PIC18F24K42-I/SO is designed for general-purpose embedded control applications requiring a balance of performance, peripherals, and low power consumption. Its robust feature set and standard packaging make it a versatile choice for many designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The program memory size is 16KB.
The operating voltage range is 2.3V to 5.5V DC.
The operating temperature range is -40°C to 85°C.
It is supplied in a 28-SOIC package.
Connectivity interfaces include I2C, SMBus, SPI, and UART.
It has 1KB of SRAM.
