| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,407 pcs
|
1407 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Number of I/O | |
| Operating Temperature | |
| Operating Voltage | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

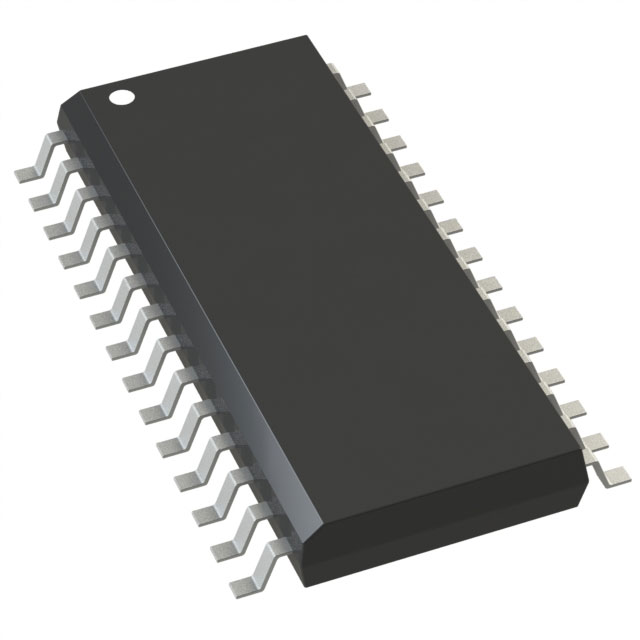

The Microchip Technology PIC16F873-20/SO is an 8-bit microcontroller based on the PIC® 16F series. It features a high-performance RISC CPU with 35 single-word instructions and operates at a maximum speed of 20MHz.
This device offers 7KB of FLASH program memory and 192 bytes of RAM, along with 128 bytes of EEPROM data memory. It includes peripherals such as a 10-bit, 5-channel Analog-to-Digital converter, Timer0, Timer1, Timer2, two Capture/Compare/PWM modules, and a Synchronous Serial Port supporting SPI and I²C protocols. It also features Brown-out Detect/Reset, Power-on Reset (POR), and a Watchdog Timer (WDT).
The PIC16F873-20/SO is supplied in a 28-SOIC package with surface mount mounting type. It operates within a voltage range of 4V to 5.5V and has an operating temperature range of 0°C to 70°C (TA). Its connectivity options include I²C, SPI, and UART/USART.
This microcontroller is suitable for various embedded applications requiring a compact and capable processing unit. Its robust feature set and standard packaging make it a versatile choice for designers.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 4V to 5.5V.
It is available in a 28-SOIC (0.295", 7.50mm Width) package.
The operating temperature range is 0°C to 70°C (TA).
The RoHS status is RoHS3 Compliant.
The program memory size is 7KB (4K x 14).
It has 192 x 8 bytes of RAM.
It includes a 5x10-bit Analog-to-Digital converter.
