| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,086 pcs
|
1086 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Operating Voltage | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

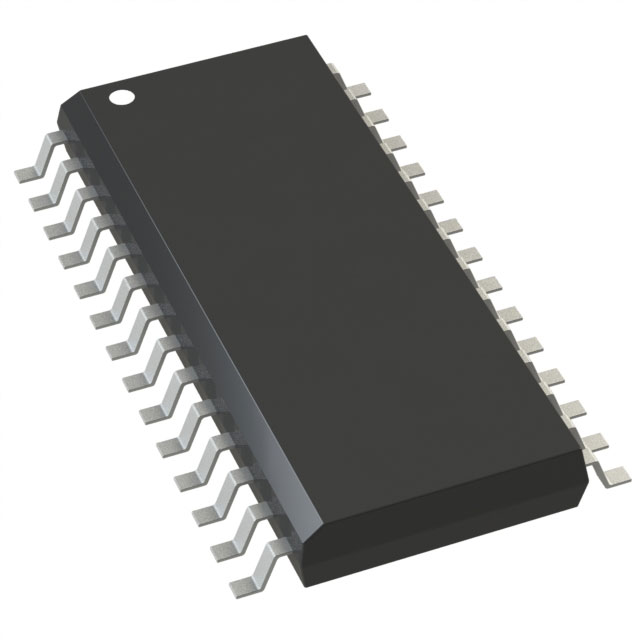

The PIC16F1513-I/SO from Microchip Technology is a high-performance 8-bit microcontroller designed for embedded applications. It features a PIC® XLP™ 16F series core processor with 7KB of FLASH program memory and 256 bytes of RAM.
This microcontroller operates within a voltage range of 2.3V to 5.5V and supports an internal oscillator with a maximum speed of 20MHz. It offers 25 I/O pins and includes advanced connectivity options such as I2C, LINbus, SPI, and UART/USART. The device also features a 17-channel 10-bit A/D converter, making it suitable for applications requiring analog signal processing.
The PIC16F1513-I/SO is housed in a 28-pin SOIC package, designed for surface mount applications. Its low power consumption, enhanced connectivity, and robust analog capabilities make it a versatile choice for various embedded systems.
Key features include a 10-bit ADC with up to 17 channels, multiple communication interfaces, and a wide operating voltage range. The device is suitable for consumer electronics, industrial control, automotive, and general-purpose embedded systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.3V to 5.5V.
The program memory size is 7KB.
The RAM size is 256 Bytes.
The maximum operating speed is 20MHz.
It uses an internal oscillator.
It is available in a 28-SOIC package.
The operating temperature range is -40°C to 85°C (TA).
