| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
115 pcs
|
115 pcs | On Request | 1 | On Request | On Request | 205 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Processor | |
| Core Size | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The Microchip Technology PIC16C554/JW is an 8-bit microcontroller designed for embedded applications. It features a PIC core with a program memory size of 896B (512 x 14) of EPROM, UV type, and 80 x 8 of RAM.
This device operates at a speed of 20MHz and utilizes an external oscillator. It supports peripherals such as POR and WDT, with 13 input/output pins available. The operating voltage ranges from 2.5V to 5.5V, and it is specified for an operating temperature range of 0°C to 70°C (TA).

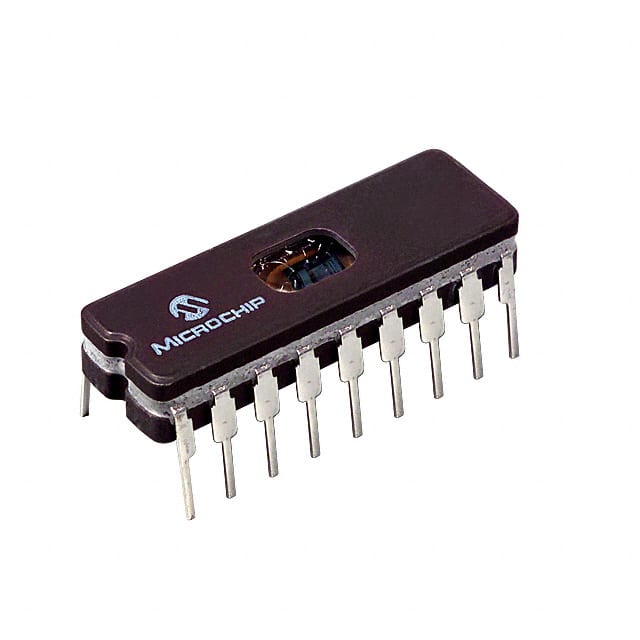

The PIC16C554/JW is supplied in an 18-CERDIP package, with the case style being 18-CDIP (0.300", 7.62mm) Window. The mounting type is Through Hole, making it suitable for various assembly processes.
This microcontroller is RoHS3 Compliant, has an MSL of 1 Unlimited, and is REACH Unaffected. Its part number is PIC16C554/JW and the DK Part Number is PIC16C554/JW-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the PIC16C554/JW is 2.5V to 5.5V.
The PIC16C554/JW is supplied in an 18-CERDIP package.
The operating temperature range for the PIC16C554/JW is 0°C to 70°C (TA).
The PIC16C554/JW is RoHS3 Compliant.
