| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
936 pcs
|
936 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Climatic Category | |
| Dielectric Material | |
| Dissipation Factor (Maximum @ 1 kHz, +23 °C) | |
| Dissipation Factor (Maximum @ 10 kHz, +23 °C) | |
| Flammability Class | |
| Height | |
| Insulation_Resistance (Minimum @ C ≤ 0.33 µF) | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Rated Voltage AC | |
| Ratings | |
| Termination | |
| Termination Style | |
| Test Voltage (between terminals) | |
| Tolerance | |
| Voltage Rating | |
| Width |

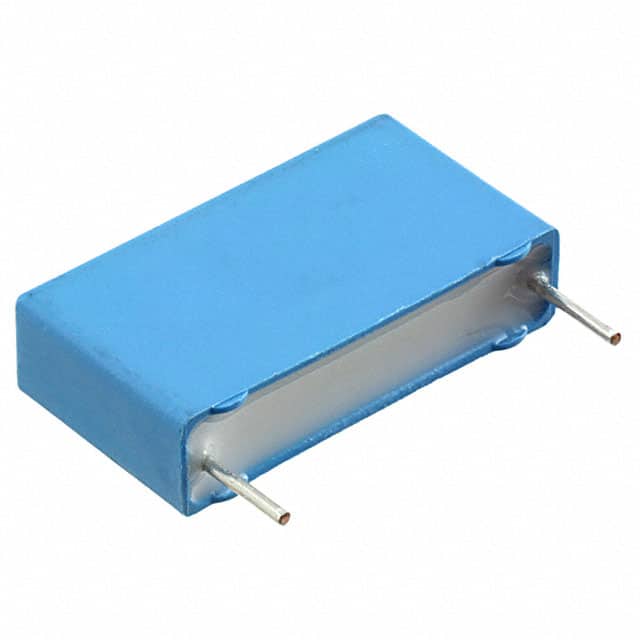

The KEMET PHE840MD6220MD13R06L2 is a metallized polypropylene film capacitor from the PHE840M series, designed for EMI and RFI suppression in across-the-line X2 applications. It offers a capacitance of 0.22µF with ±20% tolerance and is rated for 760VDC or 275VAC (ENEC) / 280VAC (UL, cUL).
The capacitor features a self-extinguishing epoxy resin encapsulation in a box of material recognized to UL 94 V–0. It is housed in a radial through-hole package with PC pin terminations and a lead spacing of 22.50mm. The operating temperature range is -55°C to +105°C.
Key electrical characteristics include a dissipation factor of 0.1% maximum at 1kHz and 0.4% at 10kHz, insulation resistance of ≥30,000 MΩ (for capacitance ≤0.33µF), and a test voltage of 2200 VDC between terminals. The climatic category is 55/105/56/B.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.42 | $1.42 |
| 10+ | $0.93 | $0.93 |
| 50+ | $0.74 | $0.74 |
| 234+ | $0.62 | $0.62 |
| 702+ | $0.56 | $0.56 |
| 1,170+ | $0.54 | $0.54 |
| 2,574+ | $0.51 | $0.51 |
| 5,148+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.22µF with ±20% tolerance.
760VDC and 275VAC (ENEC) / 280VAC (UL, cUL).
Metallized polypropylene (PP).
Radial through-hole package with 22.50mm lead spacing and PC pin terminations.
-55°C to +105°C.
Yes, RoHS3 compliant per the datasheet.
Maximum 0.1% at 1kHz and +23°C.
