| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,400 pcs
|
6400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
114 pcs
|
114 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Climatic Category | |
| Dielectric Material | |
| Dissipation Factor (Maximum @ @ 1 kHz) | |
| Dissipation Factor (Maximum @ @ 10 kHz) | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Voltage Rating AC | |
| Width |

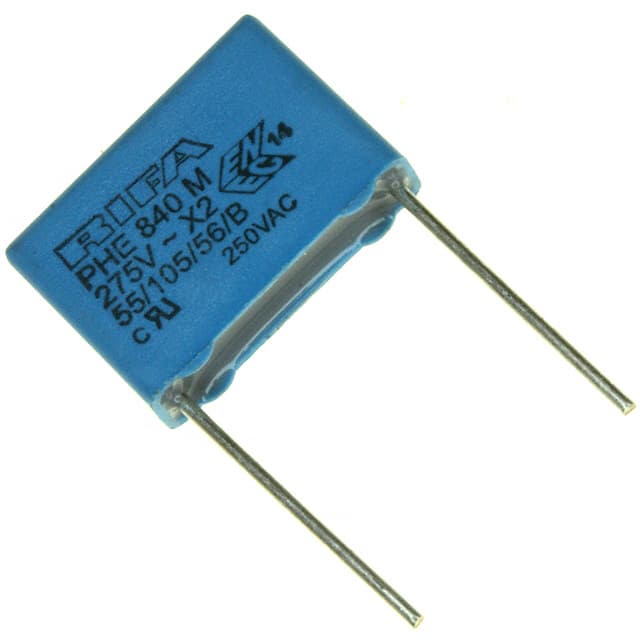

The KEMET PHE840MB6100MB05R17 is a metallized polypropylene film capacitor from the PHE840M series, designed for EMI suppression in X2 across-the-line applications. It offers a capacitance of 0.1 µF with ±20% tolerance and is rated for 760VDC and 275VAC (ENEC) / 280VAC (UL/cUL) operation.
This capacitor features a self-extinguishing epoxy resin encapsulation in a UL 94 V-0 recognized box. It is housed in a through-hole radial package with PC pin terminations and a lead spacing of 15 mm. The operating temperature range spans -55°C to +105°C, with a climatic category of 55/105/56/B.
Key electrical characteristics include a dissipation factor of 0.1% maximum at 1 kHz and 0.4% maximum at 10 kHz, and a minimum insulation resistance of 30,000 MΩ. The part is RoHS compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.01 | $1.01 |
| 10+ | $0.65 | $0.65 |
| 50+ | $0.50 | $0.50 |
| 100+ | $0.46 | $0.46 |
| 800+ | $0.37 | $0.37 |
| 1,600+ | $0.35 | $0.35 |
| 3,200+ | $0.33 | $0.33 |
| 5,600+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 0.1 µF with a tolerance of ±20%.
The DC voltage rating is 760V. The AC voltage rating is 275 VAC (ENEC) or 280 VAC (UL/cUL) at 50/60 Hz.
The dielectric is metallized polypropylene (PP).
The capacitor is in a through-hole radial package with PC pin terminations and a lead spacing of 15 mm.
The operating temperature range is -55°C to +105°C.
Yes, it is listed as RoHS3 compliant and REACH unaffected.
