| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,400 pcs
|
2400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Climatic Category | |
| Dielectric Material | |
| Dissipation Factor (Maximum @ 1 kHz, +23 °C) | |
| Dissipation Factor (Maximum @ 10 kHz, +23 °C) | |
| Dissipation Factor (Maximum @ 100 kHz, +23 °C) | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Lifecycle Status | |
| Mounting Type | |
| Operating Temperature | |
| Package Type | |
| Ratings | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Voltage Rating AC | |
| Voltage Rating DC | |
| Width |

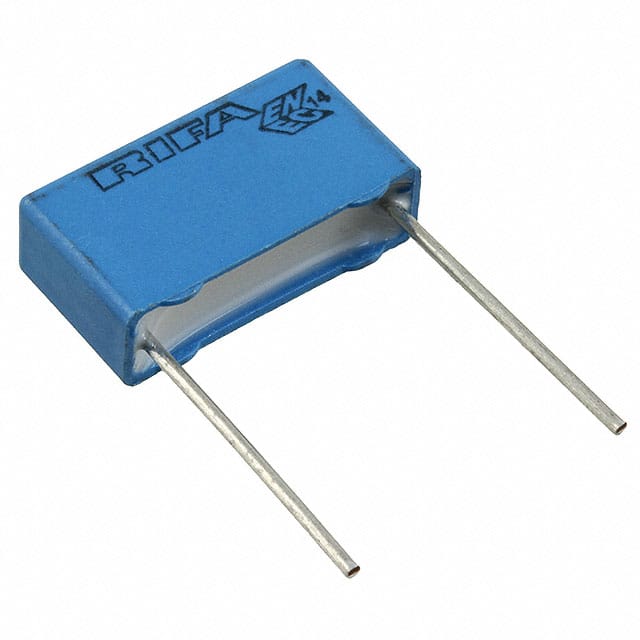

The KEMET PHE840MB5470MB04R17 is a metallized polypropylene film capacitor designed for electromagnetic interference (EMI) suppression in X2 across-the-line applications. It features a capacitance of 0.047 µF with a tolerance of ±20% and is rated for 275/280 VAC (50/60 Hz) and a recommended maximum DC voltage of 760 VDC.
This capacitor exhibits low dissipation factor: 0.1% at 1 kHz, 0.2% at 10 kHz, and 0.6% at 100 kHz (for capacitance ≤ 0.1 µF). Insulation resistance is at least 30,000 MΩ. The operating temperature range is -55°C to +105°C, with a climatic category of 55/105/56/B.
The capacitor is constructed with metallized polypropylene film encapsulated in a self-extinguishing epoxy resin box, recognized to UL 94 V-0. It is available in a radial through-hole package with PC pin terminations and a lead spacing of 15.00 mm. The dimensions are 18.00 mm length, 5.50 mm width, and 10.50 mm height.
This component is RoHS compliant and carries ENEC, UL, and cUL approvals. It is classified as Not For New Design by the manufacturer. It is not intended for use in series with the mains.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.89 | $0.89 |
| 10+ | $0.57 | $0.57 |
| 50+ | $0.44 | $0.44 |
| 100+ | $0.40 | $0.40 |
| 800+ | $0.32 | $0.32 |
| 1,600+ | $0.30 | $0.30 |
| 3,200+ | $0.28 | $0.28 |
| 5,600+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 0.047 µF.
It is rated for 275/280 VAC (50/60 Hz) and a recommended maximum DC voltage of 760 VDC.
It uses metallized polypropylene film dielectric.
The tolerance is ±20%.
It is a radial through-hole package with PC pin terminations and 15.00 mm lead spacing.
The operating temperature range is -55°C to 105°C.
The dissipation factor is 0.1% maximum at 1 kHz, +23°C.
