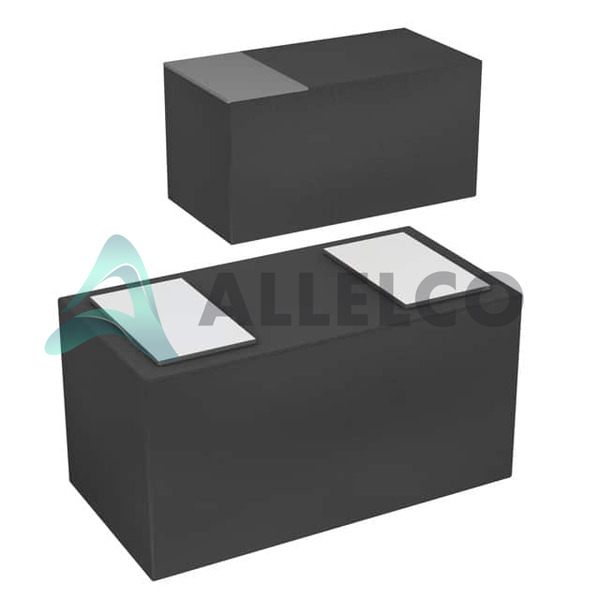

PESD5V0V1BSF The Nexperia PESD5V0V1BSF is a TVS Diode designed for transient voltage suppression. It features a 5V standoff voltage and a 12.8V maximum clamping voltage.
Mfr Part #:

PESD5V0V1BSF

Available from 1 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
The Nexperia PESD5V0V1BSF is a TVS Diode designed for transient voltage suppression. It features a 5V standoff voltage and a 12.8V maximum clamping voltage.
✓ Total Stock: 7,312 pcs
$ Price Range: $0.75

PESD5V0V1BSF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
7,312 pcs
On Request
7312 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PESD5V0V1BSF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Channels
Mounting Type
Operating Temperature
Storage Temperature
Tape & Reel
View Similar Products (0)

PESD5V0V1BSF Description

Short technical summary and product information.

The Nexperia PESD5V0V1BSF is a Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic components from voltage spikes. It offers a reverse standoff voltage of 5V and a breakdown voltage of 6V, with a maximum clamping voltage of 12.8V at 1A peak pulse current.



This TVS diode has a peak pulse power rating of 8W and a capacitance of 3.5pF at 1MHz, making it suitable for various general-purpose applications. It operates within a temperature range of -55°C to 150°C.



The PESD5V0V1BSF is packaged in a compact DSN0603-2 surface-mount case, ideal for space-constrained designs. It is RoHS3 Compliant and has an MSL rating of 1.

PESD5V0V1BSF Quick Information

Product Type: TVS Diode
Canonical Name: Nexperia PESD5V0V1BSF TVS Diode
Subcategory: Transient Voltage Suppressors

PESD5V0V1BSF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PESD5V0V1BSF Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

PESD5V0V1BSF Features

  • 5V reverse standoff voltage.
  • 12.8V maximum clamping voltage.
  • 1A peak pulse current capability.
  • Low capacitance at 1MHz.
  • DSN0603-2 surface mount package.

PESD5V0V1BSF Applications

  • Protects circuits from voltage transients
  • Used in high-speed electronic devices
  • Suitable for automotive and industrial applications
  • Ideal for signal line protection

PESD5V0V1BSF FAQs

5 frequently asked questions generated from this part’s specifications.
What is the reverse standoff voltage for the PESD5V0V1BSF?

The reverse standoff voltage is 5V.

What is the maximum clamping voltage of the PESD5V0V1BSF?

The maximum clamping voltage is 12.8V at 1A.

What is the peak pulse current rating for the PESD5V0V1BSF?

The peak pulse current rating is 1A for a 10/1000µs waveform.

What is the operating temperature range of the PESD5V0V1BSF?

The operating temperature range is -55°C to 150°C.

What package type is the PESD5V0V1BSF supplied in?

The PESD5V0V1BSF is supplied in a DSN0603-2 surface mount package.
