| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
620,000 pcs
|
620000 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request | |
|
11,020 pcs
|
11020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance @ Frequency | |
| Current | |
| ESD Protection | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Unidirectional Channels | |
| Voltage |

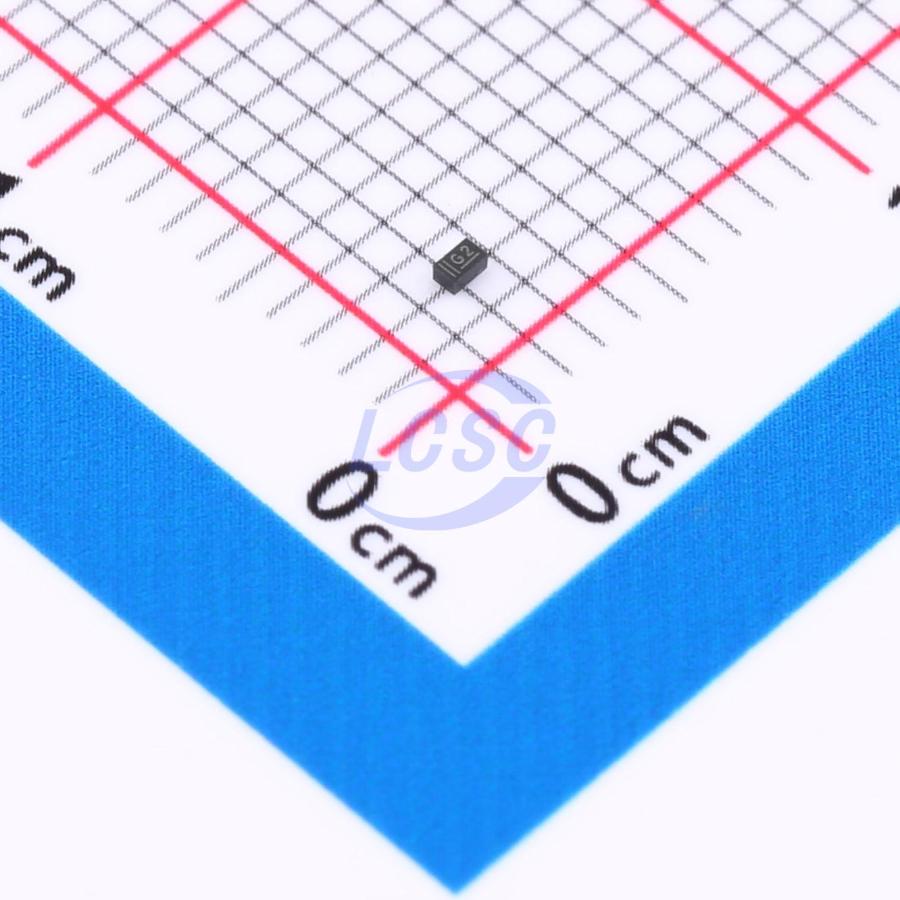

The Nexperia PESD5V0S1UL,315 is a unidirectional ElectroStatic Discharge (ESD) protection diode housed in an ultra-small SOD-882 leadless SMD plastic package. It is engineered to safeguard a single signal line from damage caused by ESD events and other transients.
Key electrical characteristics include a maximum clamping voltage of 20V and a peak pulse power rating of 150W. The diode offers ESD protection up to 30 kV, meeting IEC 61000-4-2 level 4 standards. It also complies with IEC 61000-4-5 surge standards with a peak pulse current capability of up to 15A.
This device is suitable for protecting high-speed data lines, computers and peripherals, communication systems, and audio/video equipment. Its ultra-small package and low leakage current make it ideal for space-constrained applications. The PESD5V0S1UL,315 is AEC-Q101 qualified, ensuring reliability for automotive applications.
Mounting is achieved via surface mount technology. The operating temperature range is from -65°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 3.3V, 5.0V, 12V, 15V, or 24V depending on the specific part number in the series.
The maximum clamping voltage is 20V.
The maximum peak pulse power is 150W.
The package is SOD-882, also known as DFN1006-2.
Applications include computers and peripherals, communication systems, audio and video equipment, and high-speed data lines.
