| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Capacitance @ Frequency | |
| Current | |
| ESD Contact Discharge (IEC 61000-4-2) | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Line Protection | |
| Storage Temperature | |
| Supplier Device Package | |
| Type | |
| Voltage |

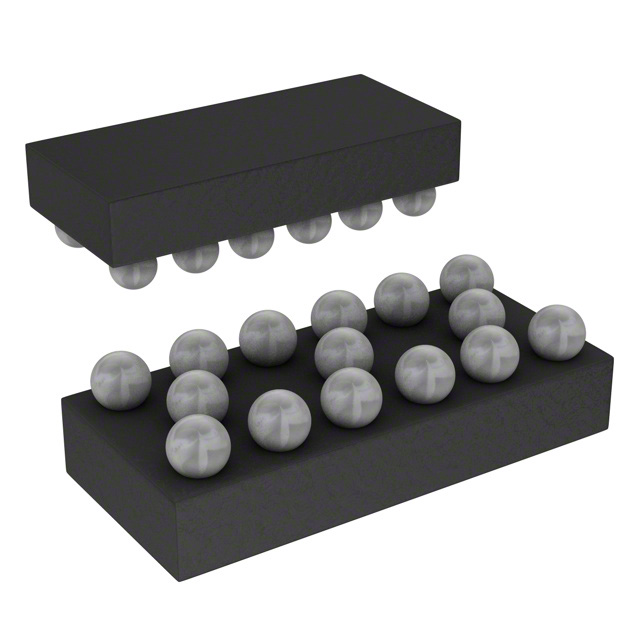

The PESD3USB3B/CX is a 3-channel Zener TVS diode designed for ESD protection on differential data lines. It is part of the PESDxUSB3B/C series from Nexperia. The device provides ESD protection up to ±20 kV contact discharge per IEC 61000-4-2, with a reverse standoff voltage of 4 V and a peak pulse current of 9.5 A (8/20 µs). Capacitance is 0.29 pF at 1 MHz, making it suitable for high-speed interfaces. The diode is bidirectional and supports applications such as HDMI, USB, and general-purpose downstream ESD protection. It is available in a WLCSP15 package for surface mount assembly, with an operating temperature range of -40°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 317+ | $0.95 | $0.95 |
| 4,500+ | $0.32 | $0.32 |
| 9,000+ | $0.29 | $0.29 |
| 13,500+ | $0.29 | $0.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse standoff voltage is 4 V.
The peak pulse current is 9.5 A for an 8/20 µs pulse.
The device is available in a WLCSP15 package.
The capacitance is 0.29 pF at 1 MHz.
The device provides ESD protection up to ±20 kV contact discharge per IEC 61000-4-2.
It has 3 bidirectional channels.
The operating temperature range is -40°C to 125°C.
