| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,050 pcs
|
5050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Feature | |
| Features | |
| Height | |
| Input Voltage Max | |
| Isolation | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage (Min) (Minimum @ Digital adjustment via PMBus) | |
| Output Voltage (Min) (Minimum @ External resistor) | |
| Output Voltage Max | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

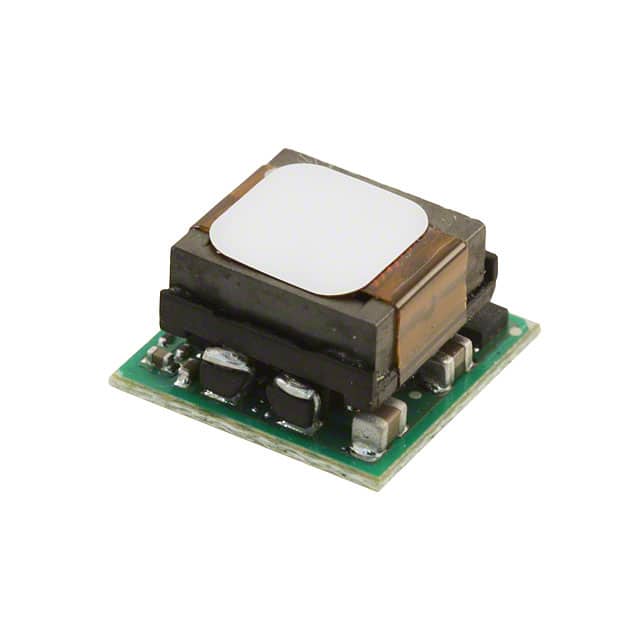

The PDT006A0X3-SRZ is a 6A non-isolated point-of-load (PoL) DC-DC converter module from ABB Power Electronics, part of the PicoDLynx series. It operates over a 3V to 14.4V input range and delivers a precisely regulated output from 0.45V to 5.5V via digital PMBus adjustment, or from 0.6V to 5.5V using an external resistor.
This module features a digital PMBus interface for control and monitoring, including remote On/Off, power good signal, and voltage margining. The Tunable Loop feature allows engineers to optimize dynamic response with reduced output capacitance. The switching frequency is fixed with capability for external synchronization.
Protection features include output overcurrent (non-latching) and overtemperature protection. Typical efficiency reaches 93.8%. The module comes in a compact 12.2mm x 12.2mm x 7.25mm 17-SMD surface-mount package and operates over a -40°C to 85°C temperature range.
The module is RoHS3 and REACH compliant, and meets IPC-9592 Category 2 Class II. It is designed for distributed power architectures, intermediate bus voltage applications, telecommunications, servers, networking, and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.78 | $10.78 |
| 5+ | $10.38 | $10.38 |
| 10+ | $10.21 | $10.21 |
| 25+ | $9.99 | $9.99 |
| 50+ | $9.83 | $9.83 |
| 100+ | $9.67 | $9.67 |
| 200+ | $9.32 | $9.32 |
| 400+ | $9.17 | $9.17 |
| 600+ | $9.08 | $9.08 |
| 1,000+ | $8.97 | $8.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3V to 14.4V.
Digitally adjustable from 0.45V to 5.5V, or externally resistor-programmable from 0.6V to 5.5V.
6A.
93.8% typical.
17-SMD Module with surface mount mounting. Dimensions 12.2mm x 12.2mm x 7.25mm.
-40°C to 85°C.
Yes, RoHS3 compliant per Directive 2011/65/EU and amended Directive (EU) 2015/863. Also REACH compliant.
