| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Contact Form | |
| Contact Plating | |
| Current Rating | |
| Current Rating (Amps) | |
| Diameter | |
| Housing Material | |
| Illumination Type, Color | |
| Ingress Protection | |
| Lamp Type | |
| Mounting Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Product Type | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage Rating |

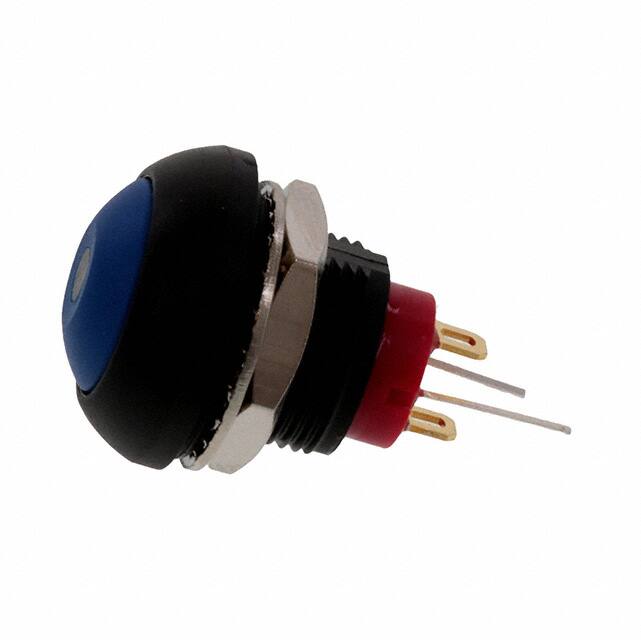

The TE Connectivity PB6B2FM7M1CAL03 is a standard, illuminated pushbutton switch designed for panel mounting. It features a round blue actuator button and provides a SPST-NO (Single Pole Single Throw Normally Open) contact form. The switch is rated for 125V AC and 125mA, or 50V DC and 200mA.
This pushbutton switch offers robust environmental protection with an IP68 rating, making it dust-tight and waterproof. It includes a red LED illumination and is terminated via solder lugs. The operating temperature range is from -30°C to 85°C. The panel cutout required is circular with a 13.60mm diameter, and the overall diameter of the switch is 17.5mm.
Constructed with a thermoplastic housing and gold-plated contacts, the PB6B2FM7M1CAL03 is designed for durability with a life cycle of 1,000,000 cycles. It is suitable for applications requiring reliable switching with visual indication.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 125 VAC.
The ingress protection rating is IP68, meaning it is dust-tight and waterproof.
The operating temperature range is -30°C to 85°C.
The RoHS status is RoHS3 Compliant.
