| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
73 pcs
|
73 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Housing Material | |
| Illumination Type, Color | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Type | |
| Voltage Rating |

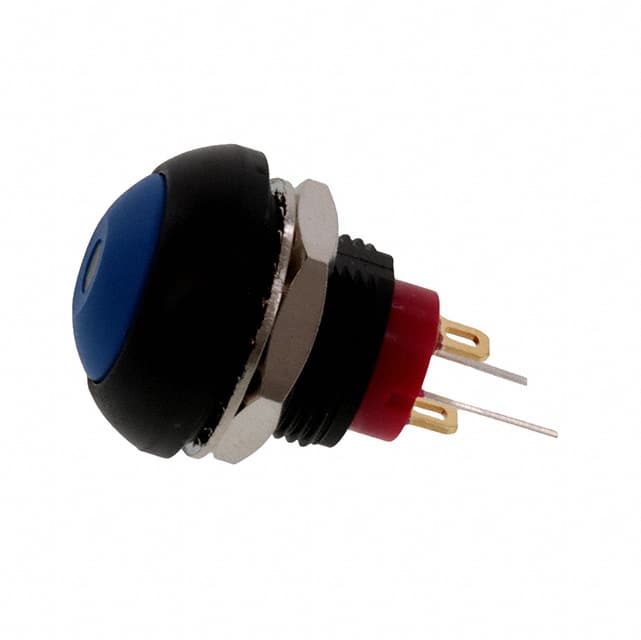

The TE Connectivity PB6B2FM7M1CAL01 is a pushbutton switch designed for panel mounting. It features a sealed, illuminated design with a round blue actuator and a white LED indicator. The switch has a Single Pole Single Throw Normally Open (SPST-NO) contact form and is rated for 125 VAC and 50 VDC with a current carrying capacity of 125mA AC and 200mA DC.
This switch offers robust environmental protection with an IP68 rating, making it suitable for dusty and wet conditions. It operates within a temperature range of -30°C to +85°C and has a mechanical life of 1,000,000 cycles. The termination style is solder lug, and the housing material is thermoplastic. The panel cutout diameter is 13.60mm.
Key specifications include its illuminated nature with white LED, a blue cap color, and a UL 94 V-0 flammability rating. The switch function is Off-Mom, and it is classified as a standard switch. This component is ideal for applications requiring a durable and visible pushbutton interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 125 VAC and 50 VDC.
The current rating is 125mA AC and 200mA DC.
The circuit configuration is SPST-NO (Single Pole Single Throw Normally Open).
The operating temperature range is -30°C to +85°C.
Yes, it has an IP68 rating, meaning it is dust tight and waterproof.
It features white LED illumination.
