| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Illumination Type, Color | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Type | |
| Voltage Rating |

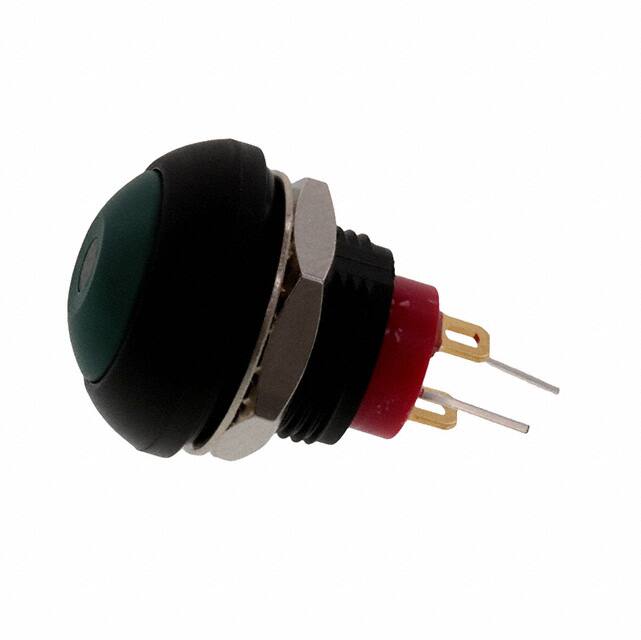

This TE Connectivity ALCOSWITCH PB6B2FM6M1CAL05 is a standard, illuminated pushbutton switch designed for robust performance in demanding environments. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration, capable of handling 125mA AC or 200mA DC at a voltage rating of 125V AC and 50V DC.
The switch is designed for front panel mounting with a circular cutout of 13.60mm diameter and utilizes solder lug termination for secure connections. Its robust construction offers an IP68 ingress protection rating, making it dust-tight and waterproof, suitable for use in harsh conditions.
With a mechanical life of 1,000,000 cycles and an electrical life of 500,000 cycles, this switch ensures reliability and longevity. It operates within a wide temperature range of -30°C to 85°C. The illuminated actuator is green with a yellow LED, providing visual indication.
This model is part of the PB6 series and is ideal for control and signaling applications in various industries, including industrial automation, transportation, and heavy machinery, particularly in environments that are harsh, wet, or dirty.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating for the PB6B2FM6M1CAL05 is 125V AC.
The current rating is 125mA (AC) and 200mA (DC).
The operating temperature range is -30°C to 85°C.
The ingress protection rating is IP68, meaning it is dust-tight and waterproof.
It uses a SPST-NO (Single Pole Single Throw Normally Open) circuit.
It is designed for front panel mounting.
The illumination color is yellow.
