| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-06-29 21:33:16 |
| Category | |
| Manufacturer Name | |
| Power Dissipation (Max) | |
| SVHC Present |

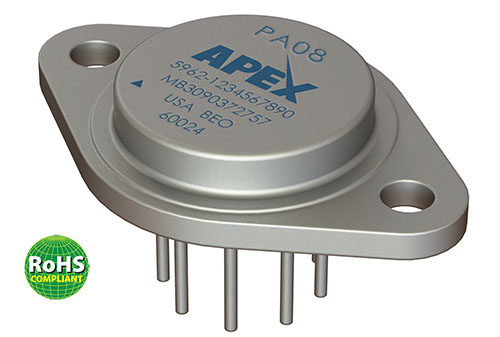

The Apex Tool Group PA08 is a high-performance linear amplifier. It is designed to deliver up to 40 A of continuous output current and supports a voltage supply operation up to 100 V.
Key electrical specifications include a typical slew rate of 50 V/µs and a maximum quiescent current of 120 mA. The maximum power dissipation is rated at 250 W.
This component is supplied in a 12-pin MO-127 (CR) package. The standard package quantity is 400 units. Target applications focus on the high power precision control of current, voltage, and speed for industrial, test and measurement, aerospace & defense, and medical markets.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PA08 provides 40A continuous output current and 100A peak.
The maximum supply voltage is 100V.
The typical slew rate is 50 V/µs.
The maximum quiescent current is 120mA.
The maximum total power dissipation is 250W.
The PA08 is housed in an MO-127 (CR) package.
The standard package quantity is 400 units.
