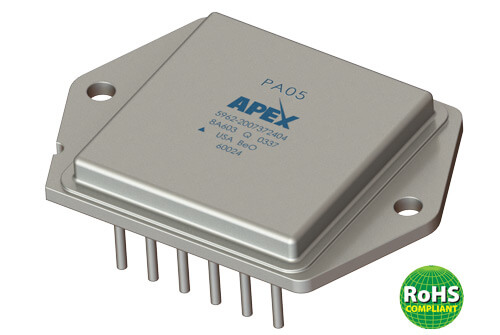

The Apex Tool Group PA05 is a robust power operational amplifier designed for demanding applications. It offers a significant 30A of continuous output current and can handle supply voltages up to 100V. Key performance metrics include a high slew rate of 100V/µs and a substantial internal power dissipation capability of 250W, making it suitable for high-power control tasks.
This amplifier features optional boost voltage inputs for enhanced efficiency and flexibility in biasing. It also includes features like current limit sensing, low distortion, and an external shutdown control. The PA05 is housed in a 12-pin MO-127 PowerDIP package, designed for through-hole mounting.
Target applications for the PA05 include motor drives, sonar transducers, and programmable power supplies, where its combination of high current, high voltage, and high slew rate is critical for precise control.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PA05 has a maximum continuous output current of 30A.
The maximum supply voltage for the PA05 is 100V.
The typical slew rate of the PA05 is 100V/µs.
The maximum quiescent current of the PA05 is 120mA.
The maximum power dissipation of the PA05 is 250W.
The PA05 operates with a voltage supply range of ±15V to ±50V.
The power bandwidth of the PA05 is 400kHz.
