| Category | |
| Manufacturer Name | |
| Applications | |
| Cord Length | |
| Current | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

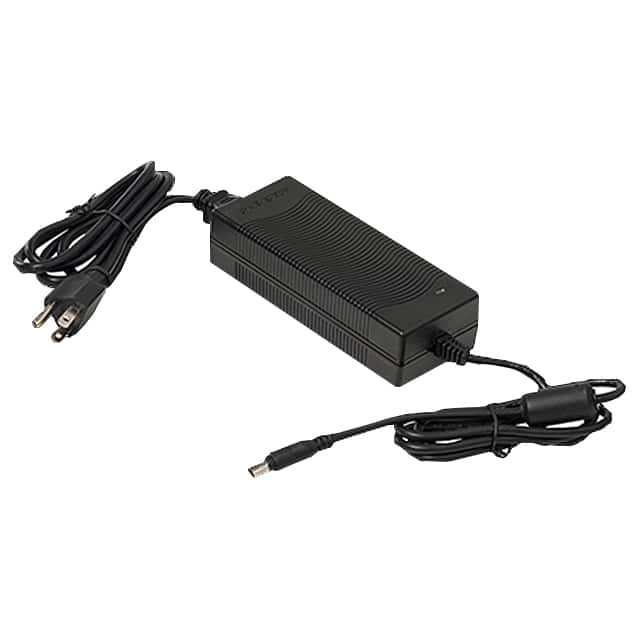

This AC/DC desktop adapter from LED Lighting Inc, model P96W24V, provides a reliable power solution with a 96W maximum output power and a stable 24V DC output voltage. It is designed to deliver up to 4A of current, making it suitable for various commercial applications.
The adapter features a NEMA 1-15P input connector for standard international power connections and a desktop form factor classified as Class II. Its dimensions are 152.4mm in length, 58.4mm in width, and 38.1mm in height, with a cord length of 1.30 meters (51.2 inches).
This unit is intended for ITE (Commercial) applications and operates with an input voltage of 120 VAC. It adheres to RoHS3 compliance and has an MSL rating of 1 Unlimited.
The output voltage is 24V.
The maximum power output is 96W.
The maximum current output is 4A.
The input connector is NEMA 1-15P.
The dimensions are 152.4mm L x 58.4mm W x 38.1mm H.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
