| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
190 pcs
|
190 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Features | |
| Halogen Free | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

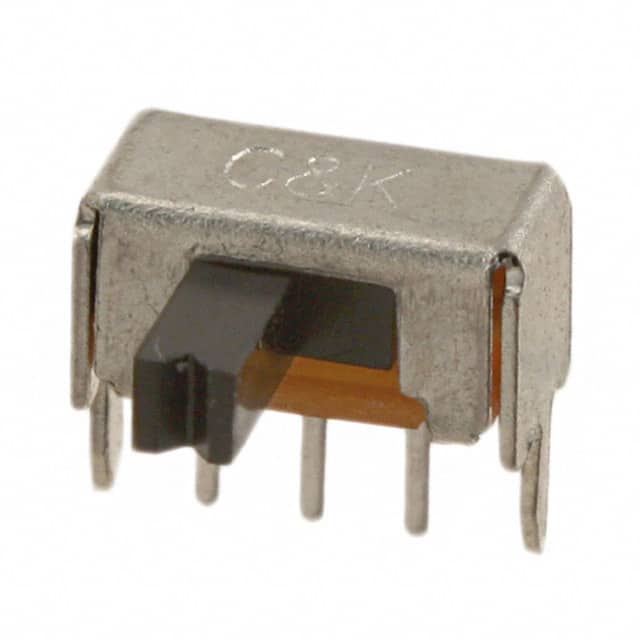

The C&K Components OS102011MA1QN1 is a miniature slide switch from the OS Series. It features a Single Pole Double Throw (SPDT) circuit configuration with a non-shorting contact timing.
This switch is designed for a voltage rating of 12V and a current rating of 100mA (DC). The contact material is copper alloy with a silver finish, and it offers a contact resistance of 20 mΩ or less. The operating temperature range is -40°C to 85°C.
Mounting is achieved via through-hole, right-angle termination style using PC pins. The switch is constructed with halogen-free materials and is RoHS3 compliant. The OS series is suitable for applications in test & measurement equipment, computer peripherals & network products, and consumer products.
Key specifications include a mechanical and electrical life of 10,000 cycles, insulation resistance of 100 MΩ min. at 500 VDC, and dielectric strength of 500 VAC for 1 minute.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.44 | $0.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 12V.
The current rating is 100mA (DC).
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 Compliant.
It uses Through Hole, Right Angle mounting.
