| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

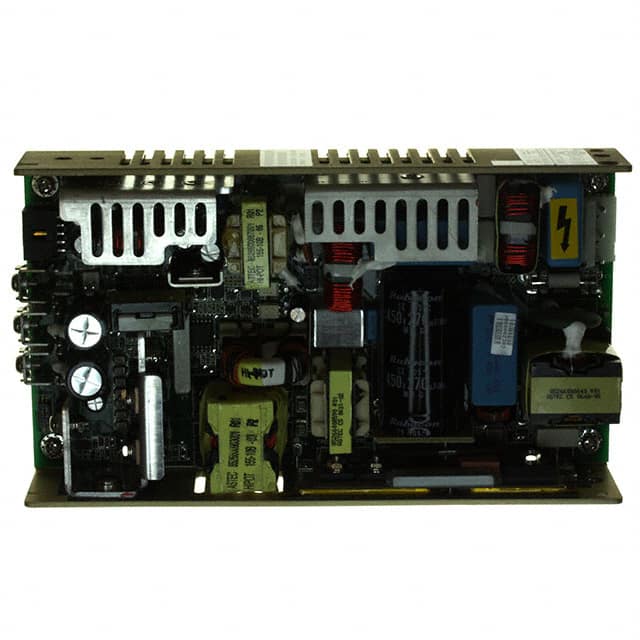

The Artesyn Embedded Power NTS358 is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides 200W of power, with a peak capability of 350W under forced air conditions.
The converter accepts a wide input voltage range of 85 to 264 VAC and features an efficiency of 85%. Its chassis mount design facilitates integration into various systems. Key features include adjustable output, DC input capability, load sharing, power factor correction (PFC), remote on/off, remote sense, and a standby output.
With dimensions of 232.3mm x 101.6mm x 40.9mm, the NTS358 is suitable for space-constrained environments. It operates within a temperature range of 0°C to 70°C, with derating applied at higher temperatures. The unit has one output and is approved by CB and CE agencies.
The NTS358 AC/DC converter accepts an input voltage range of 85 to 264 VAC.
The NTS358 AC/DC converter provides 200W of power, with a capability of 350W under forced air conditions.
The NTS358 AC/DC converter is designed for chassis mounting.
The NTS358 AC/DC converter operates from 0°C to 70°C, with derating applied.
Key features include adjustable output, DC input capability, load sharing, PFC, remote on/off, remote sense, and standby output.
The NTS358 AC/DC converter is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the NTS358 AC/DC converter is 1 Unlimited.
