| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

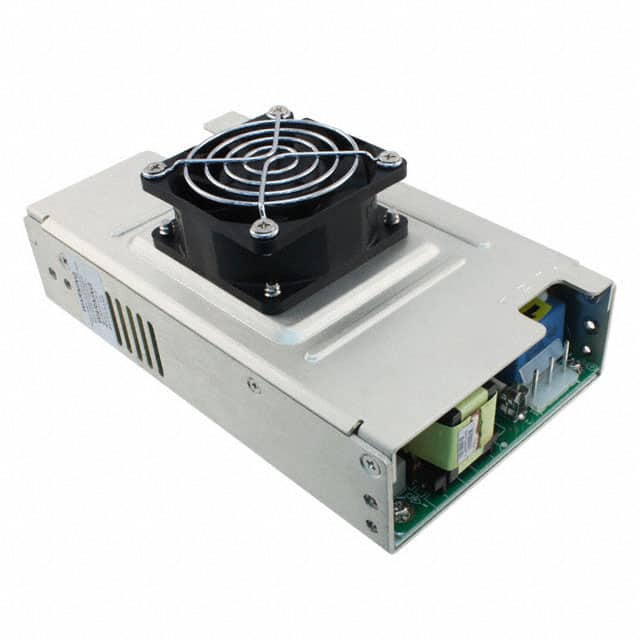

The Artesyn Embedded Power NTS353-CF is an enclosed AC DC converter designed for ITE (Commercial) applications. It provides a single output of 200W, with a maximum output current of 16.6A.
Key electrical specifications include a wide input voltage range of 85 to 264 VAC and an efficiency of 85%. The converter operates within a temperature range of 0°C to 70°C, with derating. It supports features such as adjustable output, DC input capability, load sharing, PFC, remote on/off, remote sense, and a standby output.
Mechanically, this unit is designed for chassis mounting and measures 177.8mm in length, 101.6mm in width, and 38.1mm in height. It has received approvals from CB and CE agencies.
Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status.
The operating temperature range is 0°C to 70°C with derating.
The input voltage range is 85 to 264 VAC.
The converter is enclosed and chassis mount.
The efficiency is 85%.
It has a single output.
200W under natural convection, 350W with forced air cooling.
Features include adjustable output, DC input capability, load sharing, PFC, remote on/off, remote sense, standby output, and universal input.
