| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

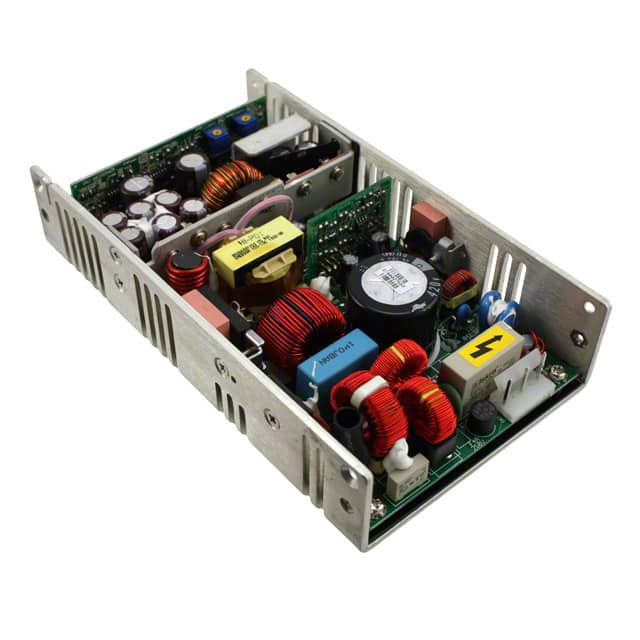

The Artesyn Embedded Power NTQ123 series AC DC converter is designed for ITE (Commercial) applications, offering a versatile solution with four outputs. This open frame unit supports chassis mounting and provides a maximum power output of 70W convection cooling, which can be boosted to 120W with 30 CFM forced air.
Key electrical specifications include an input range of 85-264 VAC with a frequency of 47-63 Hz. It boasts active power factor correction (0.99 typical) and an efficiency of 65% typical at full load. The converter includes features such as remote sense on outputs one and two, power fail signal, remote inhibit, and single wire current sharing on outputs one and two. Overload, overvoltage, and thermal overload protections are integrated for reliability.
The operating temperature range is 0°C to 50°C ambient, with derating at higher temperatures. Environmental specifications include humidity tolerance of 5% to 95% non-condensing and vibration resistance. Safety certifications include VDE, UL, CSA, NEMKO, BABT, and CE Mark.
With its robust feature set and compliance with various safety standards, the NTQ123 is suitable for demanding commercial applications requiring a reliable and efficient power conversion solution.
The NTQ123 provides 70W with convection cooling and up to 120W with 30 CFM forced air.
The input voltage range is 85-264 VAC.
The NTQ123 has 4 outputs.
Key features include active power factor correction, remote sense on outputs one and two, power fail signal, remote inhibit, and single wire current sharing on outputs one and two.
The operating temperature range is 0°C to 50°C ambient.
The NTQ123 holds certifications including VDE, UL, CSA, NEMKO, BABT, and CE Mark.
