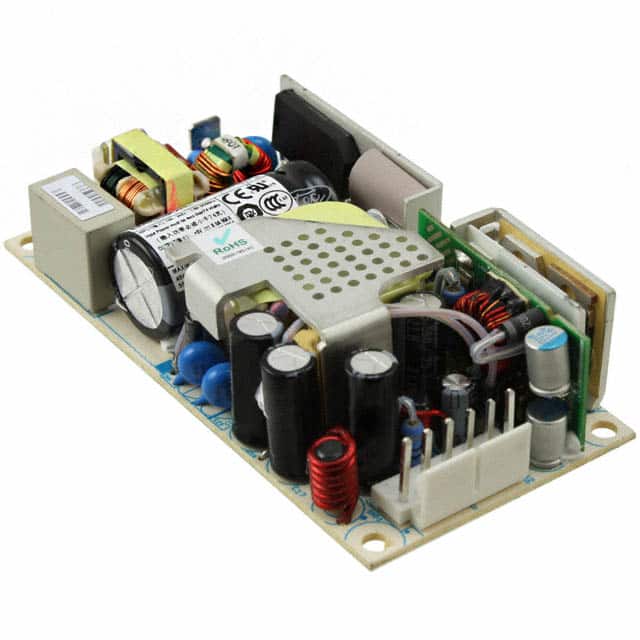

The Artesyn Embedded Power NPT40-M series, including the NPT42-M model, offers open-frame AC-DC conversion with a total power output of 45W (55W with forced air). This series accepts a universal input voltage range of 90 to 264 VAC and provides triple outputs, typically including +5V and +/-12V.
Designed for reliability, the NPT42-M boasts an average efficiency of 75% and a high MTBF of over 550,000 hours. It features essential protections such as overload and short circuit protection on all outputs, along with overvoltage protection on the main output. The operating temperature range is from 0°C to 80°C ambient.
This converter is suitable for various applications, including Information Technology Equipment (ITE) and medical devices requiring non-patient contact. Its compact dimensions (4.00" x 2.00" x 1.10") and chassis mount type make it versatile for integration into systems. Compliance includes medical and ITE safety approvals, CE Mark, and RoHS3 compliance.
The NPT42-M accepts a universal input voltage range of 90 to 264 VAC or 127 to 300 VDC.
The maximum power output is 45W for convection cooling and 55W with 30 CFM forced air.
The NPT42-M provides three outputs, including +5V and +/-12V.
The operating temperature range is 0°C to 80°C ambient.
The NPT42-M has TUV, UL, CSA, CB Certificate and report, CE Mark (LVD), and CQC Mark approvals.
