| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Depth | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Length | |
| Maximum Input Voltage | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Weight | |
| Width |

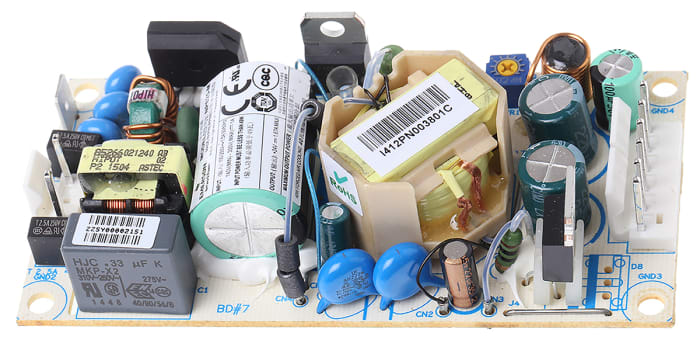

The Artesyn Embedded Power NPS25-M is a 25W switching power supply designed for AC/DC conversion. It provides a single output of 24V dc at 1.8A. The unit accepts a wide universal input voltage range from 90V ac to 300V dc, making it suitable for global applications.
Key electrical specifications include an efficiency of 87% and a low no-load power consumption of less than 300 mW. The NPS25-M series is designed for applications requiring ITE (Commercial) and Medical approvals, with features such as adjustable output voltage, remote sensing, and built-in EMI filtering.
Mechanically, this power supply is chassis mountable with dimensions of 101.6mm x 50.8mm x 25.4mm. It operates within a temperature range of 0°C to 50°C, with derating applied above 50°C. Compliance includes CE, UL, TUV, NEMKO, CSA, and CB certifications.
The NPS25-M provides a 24V dc output voltage.
The NPS25-M has a maximum output current of 1.8A.
The NPS25-M has a power rating of 25W, with a 40W rating under forced air conditions.
The NPS25-M accepts a universal input voltage range from 90V ac to 300V dc.
The NPS25-M operates within a temperature range of 0°C to 50°C.
The NPS25-M is a chassis mount power supply with dimensions of 101.6mm (Length) x 50.8mm (Width) x 25.4mm (Height).
The NPS25-M is approved by CE, UL, TUV, NEMKO, CSA, and CB.
