| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

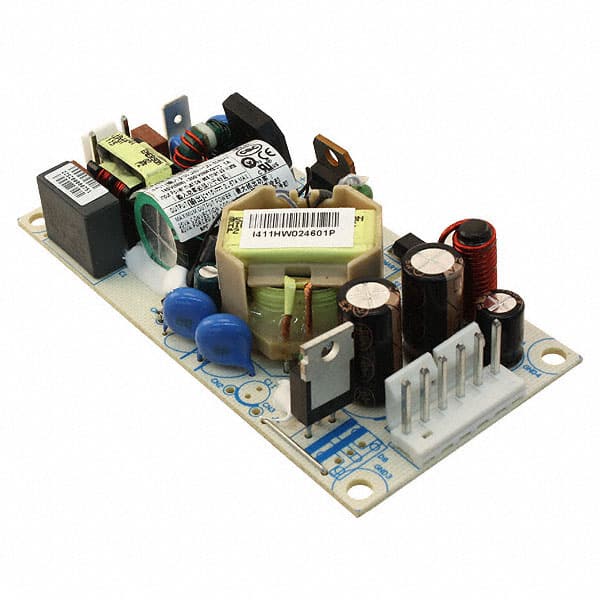

The Artesyn Embedded Power NPS23-M is an open frame AC/DC converter with a power rating of 25W, capable of handling 40W with forced air cooling. It accepts a wide input voltage range from 90 to 264 VAC and features an adjustable output.
This converter is designed for chassis mounting and includes features such as DC input capability, remote sense, and universal input. Its applications include ITE (Commercial) and Medical sectors. The unit operates within a temperature range of 0°C to 80°C with derating.
Key electrical specifications include a current rating of 3.3A and an efficiency of 87%. It has undergone approvals from CB and CE agencies. The physical dimensions are 101.6mm in length, 50.8mm in width, and 21.8mm in height.
The NPS23-M provides a single 12V output.
The NPS23-M is rated for 25W (40W with forced air).
The NPS23-M has an efficiency of 87%.
The input voltage range is 90 to 264 VAC.
The operating temperature range is 0°C to 80°C with derating.
The NPS23-M uses chassis mount.
The dimensions are 101.6mm x 50.8mm x 21.8mm.
