NMP650-CHCE-00
Mean Well USA
The Mean Well USA NMP650-CHCE-00 is a 650W AC/DC converter with multiple outputs including 5V and 12V. It offers 88.5% efficiency and chassis mounting.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

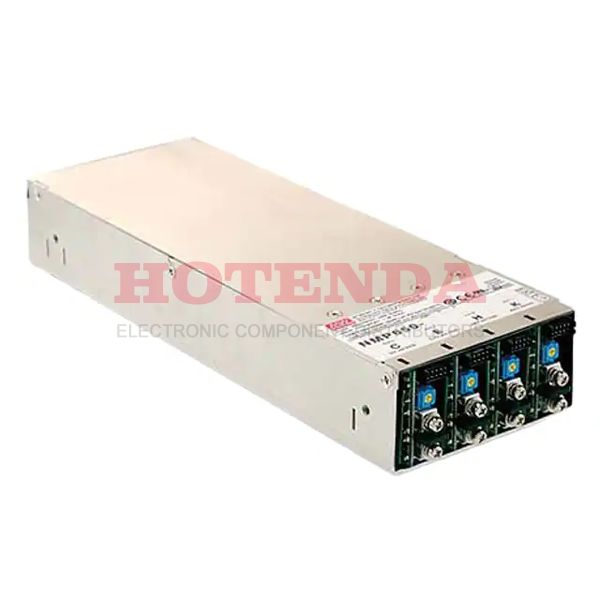

The Mean Well USA NMP650-CEKE-00 is a 650W enclosed AC DC converter designed for commercial and medical applications. It offers a universal input voltage range and features such as adjustable output, load sharing, power factor correction (PFC), remote on/off, remote sense, and a standby output.
This converter provides four outputs with maximum current ratings of 36A for the 5V output, 20A for the 12V output, 5A for the 48V output, and 2A for the second 12V output. It operates with an efficiency of 88.5% and has an isolation voltage of 4kV. The operating temperature range is -30°C to 70°C with derating.
With dimensions of 250.0mm x 89.0mm x 41.0mm, the NMP650-CEKE-00 is designed for chassis mounting. It meets safety standards including CB, CE, cURus, EAC, and TUV, and is compliant with RoHS3.
Key specifications include a 650W power rating, multiple output voltages (5V, 12V, 48V), and a wide operating temperature range. The unit is suitable for ITE (Commercial) and Medical applications.
It has four outputs: Output 1: 5V at 36A, Output 2: 12V at 20A, Output 3: 48V at 5A, Output 4: 12V at 2A.
The typical efficiency is 88.5%.
The input-to-output isolation voltage is 4kV.
The operating temperature range is -30°C to 70°C with derating.
It is certified to safety standards 60601-1 (medical) and 62368-1 (ITE) and holds approval marks from CB, CE, cURus, EAC, and TUV.
The converter is an enclosed type designed for chassis mount installation.
Yes, it includes power factor correction (PFC).
