NMP650-CCEE-00
Mean Well USA
The Mean Well USA NMP650-CCEE-00 is a 650W AC/DC converter with four outputs. It features universal input, adjustable output, and PFC.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

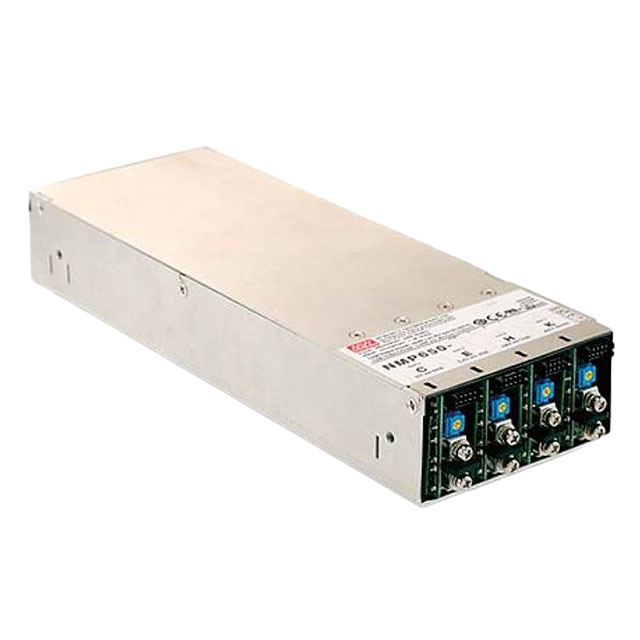

The Mean Well USA NMP650-CKEE-00 is an enclosed AC/DC converter designed for versatile applications. It offers a robust 650W power output with a universal input voltage range of 90-264 VAC.
This converter provides four distinct output voltages: 5V, 48V, and two 12V outputs, each with specific current ratings. Key features include adjustable output, load sharing capabilities, Power Factor Correction (PFC), and remote on/off functionality. It also supports remote sense and includes a standby output.
Designed for ITE (Commercial) and Medical applications, the NMP650-CKEE-00 meets stringent standards such as 60601-1 and 62368-1. It operates within a temperature range of -30°C to 70°C with derating and is housed in a chassis mountable enclosure.
The dimensions of the unit are 250.0mm x 89.0mm x 41.0mm. It boasts an efficiency of 88.5% and an isolation voltage of 4 kV.
The NMP650-CKEE-00 provides four outputs: 5V at 36A, 48V at 5A, 12V at 20A, and 12V at 20A.
The input voltage range is 90 to 264 VAC or 120 to 370 VDC.
The operating temperature range is -30°C to 70°C with derating.
The efficiency is 88.5%.
The dimensions are 250.0mm x 89.0mm x 41.0mm (9.84" x 3.50" x 1.61").
It complies with safety standards 60601-1 and 62368-1.
The isolation voltage is 4 kV.
