NMP650-EKKC-00
Mean Well USA

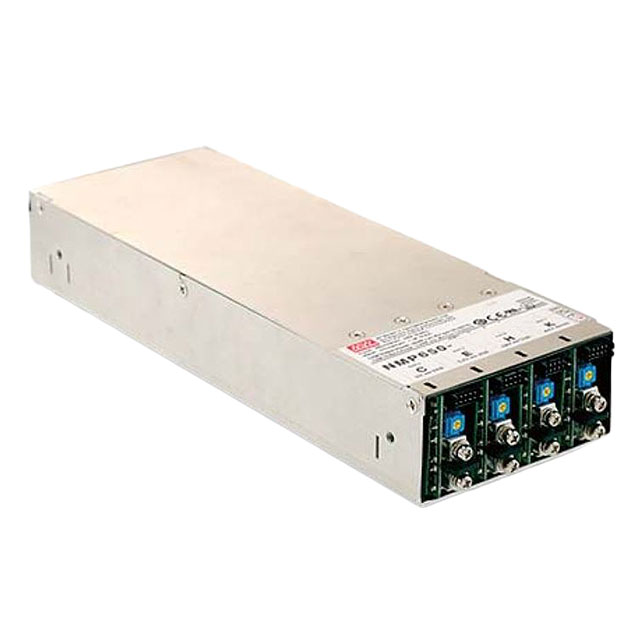

The Mean Well USA NMP650-EKKC-00 is an enclosed AC/DC converter with 650W of power and four output voltages. It features universal input and chassis mounting.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Input Voltage | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |
The Mean Well USA NMP650-CEKC-00 is a versatile enclosed AC/DC converter designed for both external and internal applications. It delivers a robust 650W of power and features a universal input voltage range of 90-264 VAC.
This converter provides four distinct output voltages: 5V, 12V, 48V, and another 5V output, with corresponding current ratings up to 36A. Key features include adjustable output, load sharing, power factor correction (PFC), remote on/off, remote sense, and a standby output. The operating temperature range is -30°C to 70°C with derating.
With an efficiency of 88.5%, the NMP650-CEKC-00 is suitable for demanding applications in ITE (Commercial) and Medical sectors. It meets safety standards such as 60601-1 and 62368-1, and is approved by agencies including CB, CE, cURus, EAC, and TUV. The unit is chassis mounted and measures 250.0mm x 89.0mm x 41.0mm.
The converter provides four outputs rated at 5V, 12V, 48V, and 5V respectively.
The unit delivers a total continuous power output of 650W across all channels.
The enclosure is designed specifically for direct chassis mounting using standard fasteners.
The device functions reliably between -30°C and 70°C when proper thermal derating is applied.
Input and output circuits are separated by a reinforced 4 kV isolation barrier.
It meets UL 60601-1 and IEC 62368-1 requirements for medical and commercial use.
Units ship individually inside standard protective cardboard boxes.
