| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

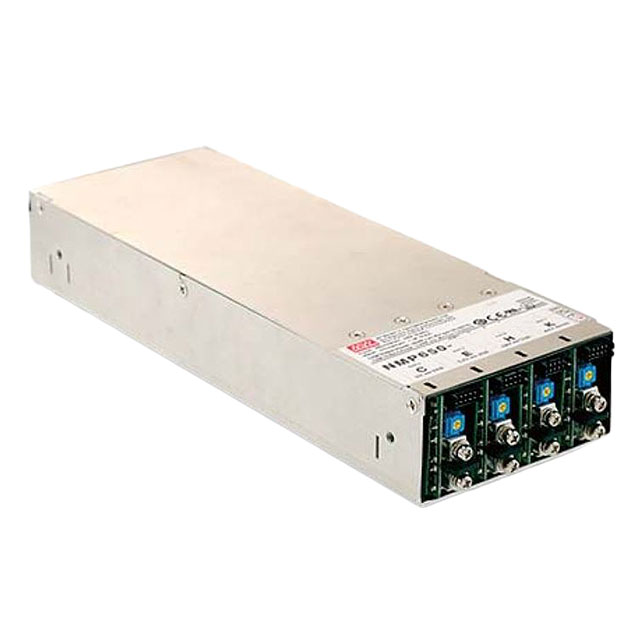

The Mean Well USA NMP650-EKKC-00 is a 650W enclosed AC/DC converter designed for both external and internal applications. It offers universal input voltage ranging from 90 to 264 VAC or 120 to 370 VDC, making it suitable for global use.
This converter provides four distinct output voltages: 12V, two 48V outputs, and a 5V standby output, with corresponding current ratings of 20A, 5A, 5A, and 36A respectively. Key features include Power Factor Correction (PFC), adjustable output, load sharing capabilities, remote on/off, remote sense, and a standby output. The efficiency is rated at 88.5%.
With an isolation voltage of 4 kV, it meets safety standards such as 60601-1 and 62368-1. The operating temperature range is -30°C to 70°C with derating. Its dimensions are 250.0mm x 89.0mm x 41.0mm, and it is designed for chassis mounting.
Applications for the NMP650-EKKC-00 include ITE (Commercial) and Medical equipment. It is RoHS3 compliant and has an MSL rating of 1 Unlimited.
90 to 264 VAC and 120 to 370 VDC.
-30°C to 70°C with derating.
Enclosed chassis mount package, supplied in a box.
12V/20A, 48V/5A (two), and 5V/36A.
88.5%.
4 kV.
UL 60601-1 and 62368-1.
