| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Depth | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Power Rating | |
| Type | |
| Voltage | |
| Weight | |
| Width |

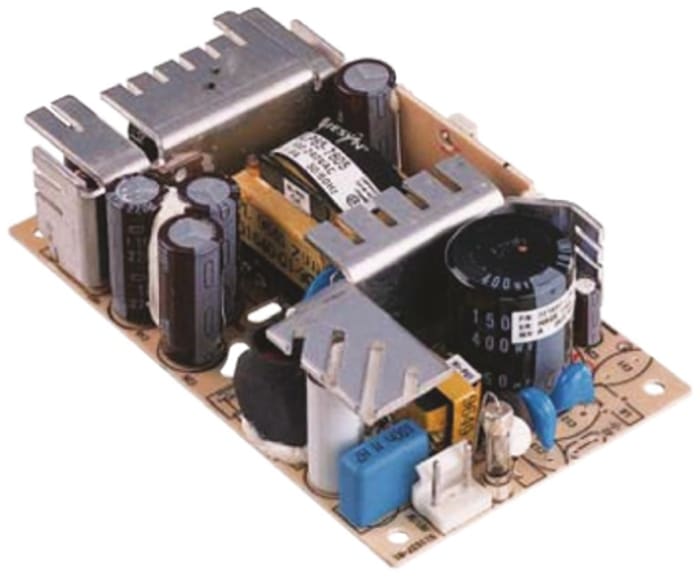

The Artesyn Embedded Technologies NLP65-9924J is a 65W AC/DC converter designed for various applications, including medical, laboratory, and dental equipment. It provides a stable 24V DC output at 2.7A.
Key electrical specifications include a universal input voltage range of 85-264V AC, an efficiency of 72%, and an isolation voltage of 4kV. The operating temperature range is from 0°C to 70°C.
This converter features an open frame package suitable for chassis mounting. Its dimensions are 127mm in length, 76.2mm in width, and 32mm in depth. The NLP65-9924J is part of the NLP Medical Series, offering full medical safety approvals and a high power density in a small size.
It includes over-voltage and short-circuit protection, making it ideal for demanding applications such as centrifuges, incubators, and infusion pumps.
The output voltage is 24V dc.
The output current is 2.7A.
The power rating is 65W.
It has 1 output.
The input voltage range is 85-264V ac.
The operating temperature range is 0°C to 70°C.
It comes in an open frame package.
