| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

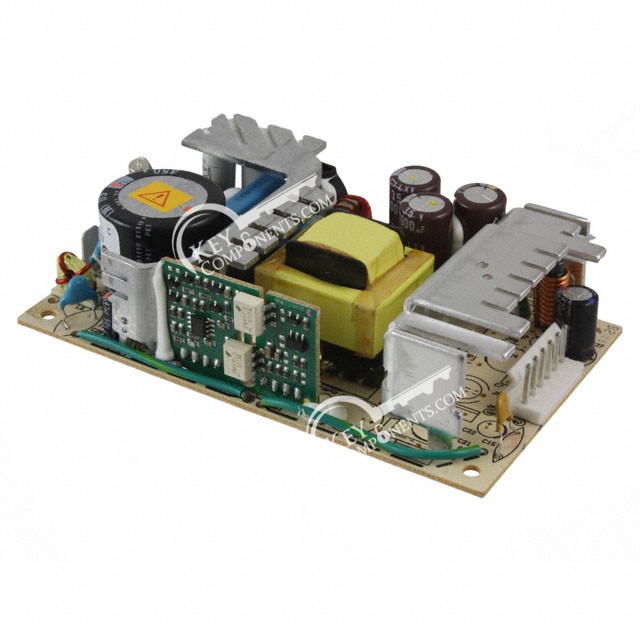

The NLP65-7624J is an AC/DC converter from Artesyn Embedded Power, part of the NLP65 series. It delivers a single 24V output at 2.7A, with a continuous power rating of 60W (70W with forced air cooling). The converter accepts a universal input voltage range of 85 to 264 VAC and provides 3kV of voltage isolation. Efficiency is rated at 72%.
The converter is housed in an open frame package designed for chassis mount installation. Physical dimensions are 127.0mm (length) x 76.2mm (width) x 32.0mm (height). It is intended for ITE (commercial) applications and operates over a temperature range of 0°C to 70°C. The unit supports both DC input and universal AC input.
0°C to 70°C.
85 to 264 VAC.
24V.
2.7 A.
60W (70W with forced air).
72%.
3 kV.
