| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

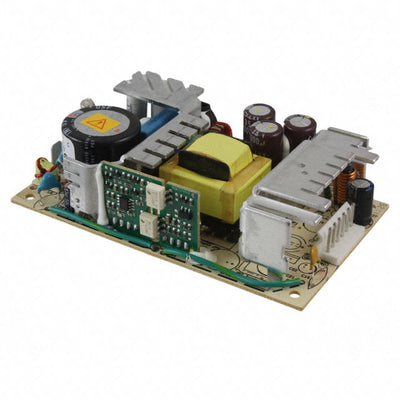

The Artesyn Embedded Power NLP65-7624G is an AC/DC converter with a power rating of 65W, capable of 75W with forced air. It features an open frame construction and is designed for chassis mounting.
Key electrical specifications include a voltage rating of 3 kV, a current output of 2.7 A, and an efficiency of 72%. It supports DC Input Capable and Universal Input features, making it versatile for various applications, particularly ITE (Commercial).
The dimensions of the unit are 127.0mm x 76.2mm x 32.0mm. The operating temperature range is from 0°C to 70°C. The converter has a single output.
Compliance information indicates RoHS3 compliance and an MSL rating of 1 Unlimited. The ECCN is EAR99 and HTSUS is 8504.40.6018.
The NLP65-7624G provides 65W of power, with a capability of 75W under forced air conditions.
The dimensions are 127.0mm x 76.2mm x 32.0mm.
The operating temperature range is 0°C to 70°C.
Yes, the NLP65-7624G is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The ECCN is EAR99.
The HTSUS code is 8504.40.6018.
