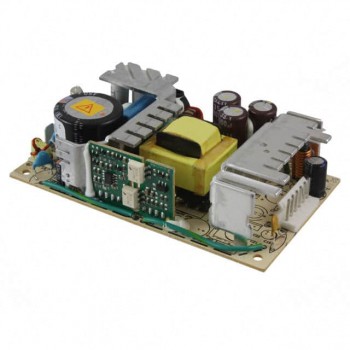

The Artesyn Embedded Power NLP65-7624E is an AC/DC converter designed for ITE (Commercial) applications. This open frame unit operates with a universal input voltage range of 85 to 264 VAC, providing a stable 24V output at up to 2.7A, for a total power of 65W. It features a 72% efficiency rating and an isolation voltage of 3 kV.
Designed for easy integration, the NLP65-7624E is chassis mountable and has dimensions of 5.00" L x 3.00" W x 1.26" H (127.0mm x 76.2mm x 32.0mm). It operates within a temperature range of 0°C to 70°C and includes features such as DC input capability and universal input.
This converter is part of the NLP65 series, which offers up to 75W with forced air cooling. It is suitable for various commercial and industrial applications requiring reliable power conversion.
85 to 264 VAC.
Open frame, chassis mount. Dimensions: 127.0mm x 76.2mm x 32.0mm.
0°C to 70°C.
24V.
2.7A.
65W continuous, 75W with forced air cooling.
3 kV.
