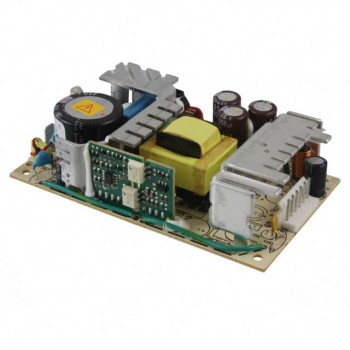

The Artesyn Embedded Power NLP65-7615G is an AC/DC converter designed for ITE (Commercial) applications. It provides a single output voltage of 15V with a maximum current of 4.4A, delivering 65W of power (75W with forced air).
This converter operates with a universal input voltage range of 85 to 264 VAC and features an efficiency of 72%. It offers 3 kV of isolation and is built with DC input capability and universal input features. The operating temperature range is from 0°C to 70°C.
The unit is designed with an open frame construction and a chassis mount type, with dimensions of 127.0mm L x 76.2mm W x 32.0mm H. It is RoHS3 Compliant and has an MSL rating of 1.
85 to 264 VAC.
15V at 4.4A.
65W (75W with forced air).
0°C to 70°C.
Chassis Mount.
3 kV.
72%.
