| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Weight | |
| Width |

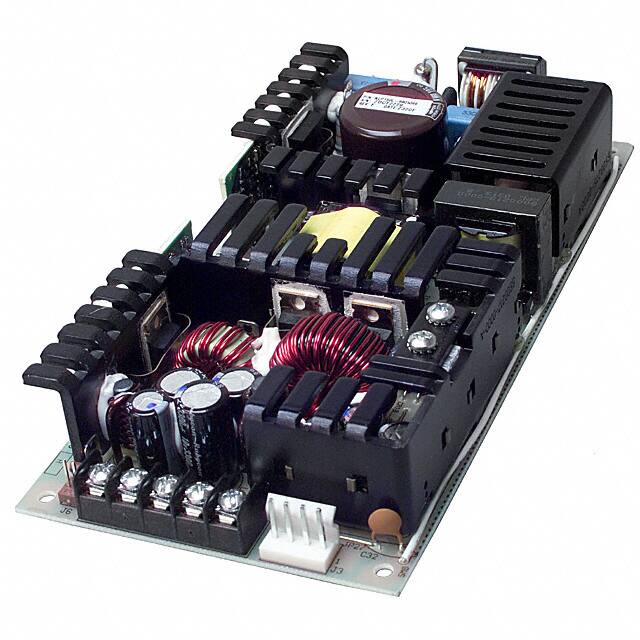

The Artesyn Embedded Power NLP150L-96Q5366 is a 150W AC/DC open frame power supply designed for low to medium power applications. It offers a universal input voltage range of 90VAC to 264VAC and provides quad outputs, including 5.1V, 3.3V, and dual 12V.
Key electrical specifications include a maximum power output of 150W with forced air and 110W convection cooled, a typical efficiency of 73% at 120VAC/150W, and isolation voltages of 3000VAC (input/output) and 1500VAC (input/chassis). It supports features like load sharing and overvoltage/short circuit protection.
This power supply meets various compliance standards including EN61000-3-2, EN55022-B conducted noise, and EN55022-A radiated noise. It also meets immunity standards EN61000-4-2, -3, -4, -5, and -6. Safety approvals include CE, CSA, and VDE.
The unit is housed in an open frame chassis mount package with dimensions of 7.80" L x 3.80" W x 1.26" H. It operates within a temperature range of 0°C to 70°C with derating and is designed for ITE (Commercial) applications.
The input voltage range is 90 to 264 VAC universal.
The converter provides four outputs: 5.1V, 3.3V, and dual 12V.
It delivers 110W under natural convection and 150W with forced air cooling.
The operating temperature range is 0°C to 70°C with derating.
It is a chassis mount, open frame package.
Overvoltage protection at 125% ±10% on main outputs and continuous short circuit protection.
Isolation voltage is 3000VAC input/output and 1500VAC input/chassis.
