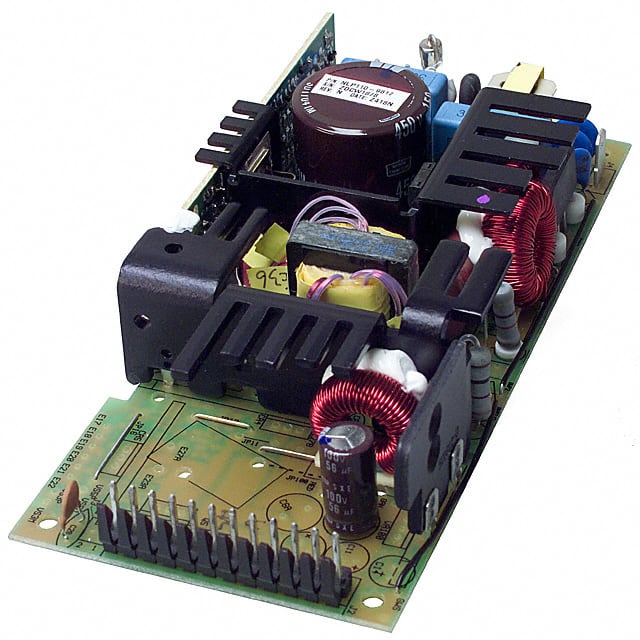

The NLP110-9617 is an open frame AC/DC converter designed for chassis mount installation. It delivers 80W of continuous power (110W with forced air cooling) at a nominal 48V output and 1.6A current. The converter achieves 75% typical efficiency and includes power factor correction (PFC) for improved power quality. It accepts a universal input voltage range, making it suitable for global applications.
Mechanically, the unit measures 165.1mm x 76.2mm x 32.0mm and operates over a temperature range of 0°C to 70°C with derating. It is intended for ITE (commercial) equipment and features a single output. The open frame construction allows for flexible integration into end equipment.
Key electrical characteristics include a 3kV isolation voltage rating, ensuring safe separation between input and output. The converter is designed for reliable performance in commercial electronic systems.
0°C to 70°C with derating.
80W continuous, 110W with forced air cooling.
75%.
Yes, it features PFC and universal input.
Chassis mount.
165.1mm x 76.2mm x 32.0mm.
3kV.
