NLP110-9695
Artesyn Embedded Power
The Artesyn Embedded Power NLP110-9695 is an 80W AC/DC converter with an open frame design and chassis mount. It operates within a temperature range of 0°C to 70°C.
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

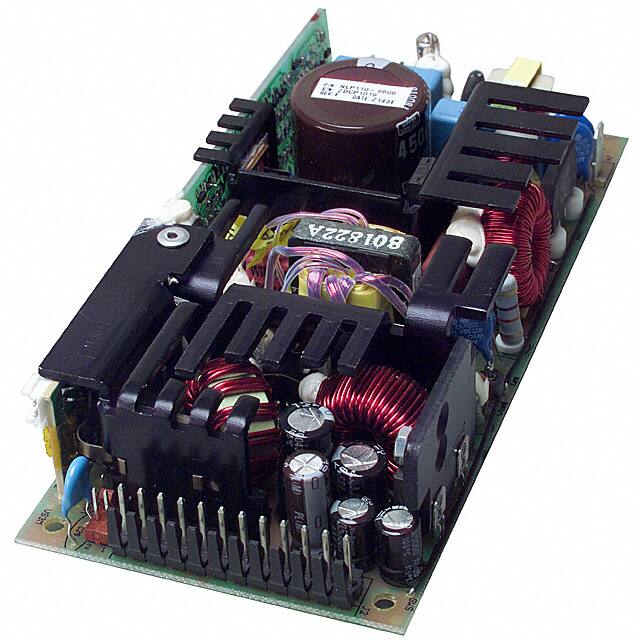

The Artesyn Embedded Power NLP110-9608 is an AC DC converter designed for ITE (Commercial) applications. It features an Open Frame construction and is suitable for Chassis Mount installations.
This converter offers an output power of 80W, with a forced air rating of 110W. It includes features such as Power Factor Correction (PFC) and Universal Input. The device has 3 outputs, including a -12V output with a current rating of 650 mA. The operating temperature range is from 0°C to 70°C with derating.
Key electrical specifications include an efficiency of 75%. The dimensions of the unit are 165.1mm in length, 76.2mm in width, and 32.0mm in height.
Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1, and REACH Unaffected status.
The NLP110-9608 is an Open Frame AC DC converter.
The NLP110-9608 is designed for Chassis Mount.
The NLP110-9608 has an output power of 80W, with a forced air rating of 110W.
The dimensions are 165.1mm in length, 76.2mm in width, and 32.0mm in height.
The operating temperature range is 0°C to 70°C with derating.
Yes, the NLP110-9608 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
