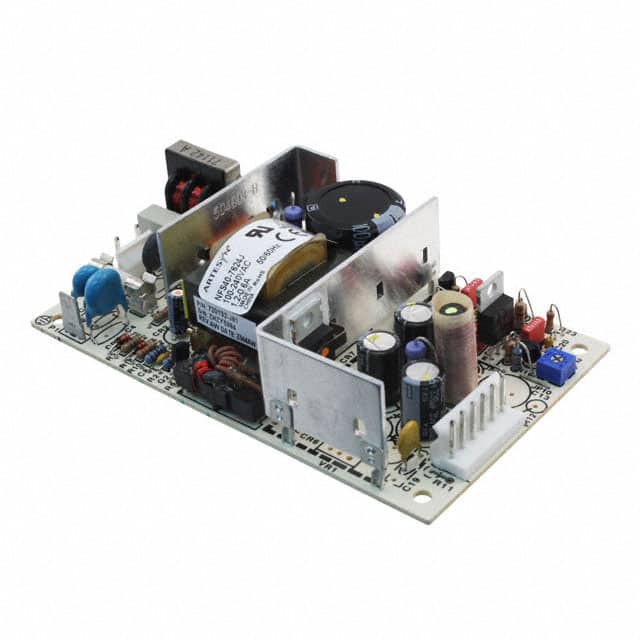

The Artesyn Embedded Power NFS40-7615 is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a total power of 40W with free air convection, or 50W with 20 CFM forced air.
The converter operates with a universal input voltage range of 85-264 Vac and features a single output of 15V at 2.6A. Key electrical specifications include 70% typical efficiency, ±0.2% line regulation for the main output, and ±2.0% load regulation for the main output. It also offers overvoltage and short circuit protection.
With dimensions of 5.00" x 3.00" x 1.20" (127.0mm x 76.2mm x 30.5mm), the NFS40-7615 is designed for chassis mounting. The operating temperature range is 0°C to 70°C with derating. Safety approvals include UL, VDE, and CSA, complying with standards such as EN60950 and UL1950.
The output voltage is 15V and the output current is 2.6A.
The input voltage range is 85-264 Vac (47-440 Hz) or 120-370 Vdc.
40W under free air convection, 50W with 20 CFM forced air.
0°C to 70°C with derating.
Open frame, chassis mount. Dimensions: 127.0mm x 76.2mm x 30.5mm.
UL, VDE, and CSA safety approvals. Standards include VDE0805/EN60950/IEC950/IEC1010, UL1950, and CSA C22.2 No. 950.
3000 Vac input/output, 1500 Vac input/chassis.
