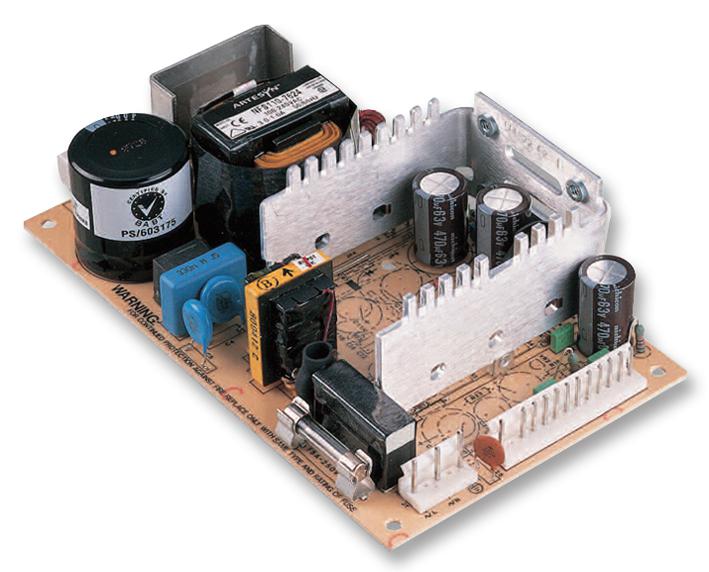

The Artesyn Embedded Power NFS110-7624J is an open-frame AC/DC power supply designed for various industrial and IT applications. It provides a single 24V output, delivering 80W with natural convection cooling or up to 110W when utilizing 20 CFM of forced air.
This power supply operates with a universal input voltage range of 85-264 VAC and a frequency range of 47-440 Hz. Key electrical specifications include ±0.1% line regulation, overvoltage protection, and short circuit protection via burst mode operation. The unit offers a voltage adjustability range of 24-30V.
With dimensions of 7.00 x 4.25 x 1.80 inches, the NFS110-7624J is suitable for chassis mounting. It operates within a temperature range of 0°C to 70°C with derating and meets various EMC standards including EN55022 and FCC Part 15 Level B for conducted emissions.
Safety approvals include CE, UL, VDE, and CSA, making it suitable for ITE (Commercial) applications. The power supply also features a 2-year warranty.
The nominal output voltage is 24 V, adjustable from 24 V to 30 V.
80 W with convection cooling, and 110 W with 20 CFM forced air cooling.
85-264 Vac or 120-370 Vdc.
0°C to 70°C with derating above 50°C.
UL, VDE, and CSA safety approvals. It is also CE marked.
Open frame, chassis mount.
