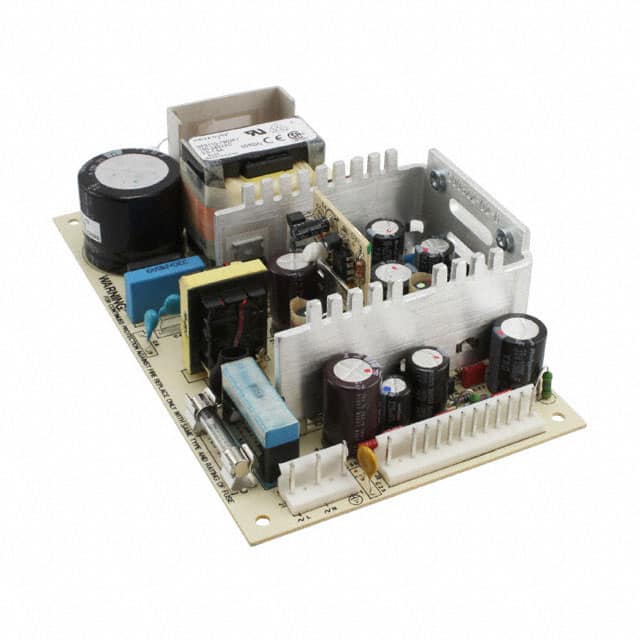

The Artesyn Embedded Power NFS110-7602J is an 80W AC/DC converter designed for ITE (Commercial) applications. This open frame unit features a chassis mount and universal input capabilities, supporting a wide input voltage range of 85-264 Vac.
Key electrical specifications include adjustable outputs, overvoltage and short circuit protection, and a typical efficiency of 70%. The converter operates within a 0°C to 70°C ambient temperature range, with derating required at higher temperatures or when using convection cooling. Forced air cooling with 20 CFM can increase the power output to 110W.
Mechanical dimensions are 108.0mm x 177.8mm x 45.7mm (4.25" L x 7.00" W x 1.80" H). The NFS110-7602J series also includes features such as DC input capability and compliance with various EMC standards like EN55022 and FCC Part 15.
This series is designed for business-critical continuity, offering reliable power conversion for demanding environments. It is available with RoHS3 compliance.
85-264 Vac or 120-370 Vdc.
+5.1V, +24V, and ±12V.
0°C to +70°C.
Overvoltage protection per output and burst mode short circuit protection.
Convection cooled to 80W at 0-50°C, derating to 2W/°C above 50°C. With 20 CFM forced air, up to 110W at 0-50°C.
70% typical.
Chassis mount in an open frame package.
