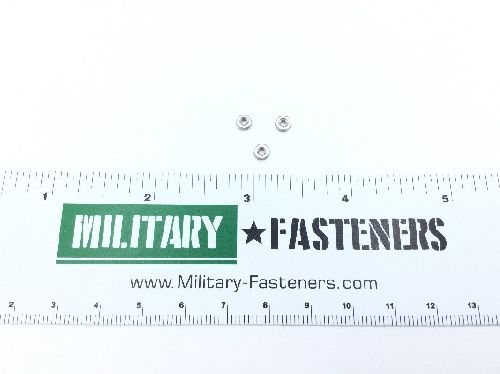

The NAS671C2 from QPL is a plain hexagon nut designed for various mechanical applications. It is constructed from steel and features a passivate surface treatment for enhanced durability.
Key specifications include a thread size of 0.086 inches (2-56) with a thread quantity per inch (tpi) of 56. The nut adheres to a 3b thread class and has a right-hand thread direction. Its dimensions include a nut height ranging from 0.057 to 0.066 inches and a width across flats between 0.150 and 0.156 inches. The material specification follows Mil-s-7720 military standards.
This hexagon nut has a countersink angle of 110 degrees and a bearing surface type that is chamfered or washer faced. It is supplied in a standard package of 50 pieces, with a minimum order quantity also set at 50.
Compliance information indicates RoHS3 compliance, REACH unaffected status, and an MSL of 1 Unlimited. The NAS671C2 is suitable for applications requiring a reliable and durable fastening solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.086-inch thread size, 56 threads per inch, UNJC series, right-hand, class 3B.
Steel material with passivate surface treatment to MIL-S-7720 specification.
Nut height ranges from 0.057 to 0.066 inches; width across flats ranges from 0.150 to 0.156 inches.
Chamfered or washer faced.
110 degrees.
Yes, NAS671-C2.
