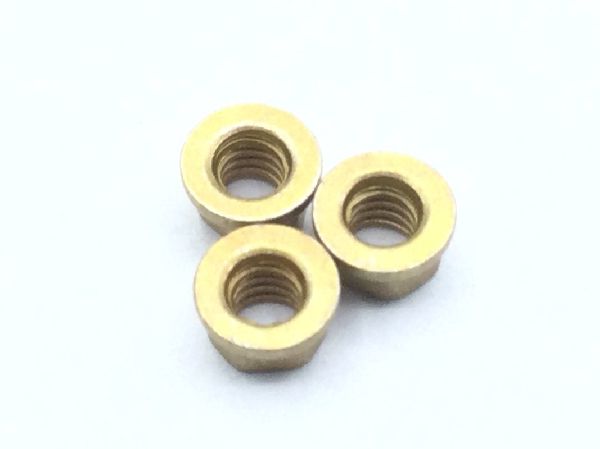

The MS21042-02 is a self-locking extended washer nut manufactured by Military Spec. This component is constructed from steel and features a cadmium surface treatment, adhering to QQ-P-416 federal specification. It has a thread size of 2-56 with a 3B thread class and a right-hand thread direction.
Key mechanical specifications include a width across flats between 0.122 and 0.127 inches, an overall height between 0.080 and 0.100 inches, and a washer thickness of 0.010 inches with an outside diameter of 0.167 inches. The nut has a hardness rating of 49.0 Rockwell C and a prevailing torque all-metal design for secure locking. It is lubricated with a soluble lubricant.
This nut is designed for demanding applications, including use in Mk 26 (gmls), intermediate forward test equipment (ifte) systems on HC-130s, guided missile launch systems, and various aircraft and fire control systems. Its robust construction and locking feature make it suitable for environments where vibration and shock are present.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The thread size is 2-56.
The material is Steel.
The surface treatment is Cadmium.
The temperature rating is 450 degrees Fahrenheit.
It has a prevailing torque all metal design.
The standard package quantity is 25.
