| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 1st Connector | |
| 2nd Connector | |
| Attenuation @ 850NM | |
| Cable Jacket Color | |
| Cable Jacket Material | |
| Cable Jacket Rating | |
| Cable Type | |
| Clad Diameter | |
| Connector Color | |
| Core Diameter | |
| Endface Polish | |
| Features | |
| Fiber Type | |
| Insertion Loss (Typical @ LC connector) | |
| Insertion Loss (Typical @ SC connector) | |
| Length | |
| Minimum Bend Radius (Minimum @ Dynamic) | |
| Minimum Bend Radius (Minimum @ Static) | |
| Network Compatibility | |
| Number of Fibers | |
| Operating Humidity Range | |
| Operating Temperature Range | |
| Optical Mode | |
| Ratings | |
| Shipping Weight | |
| Storage Humidity Range | |
| Storage Temperature | |
| Storage Temperature Range | |
| Type |

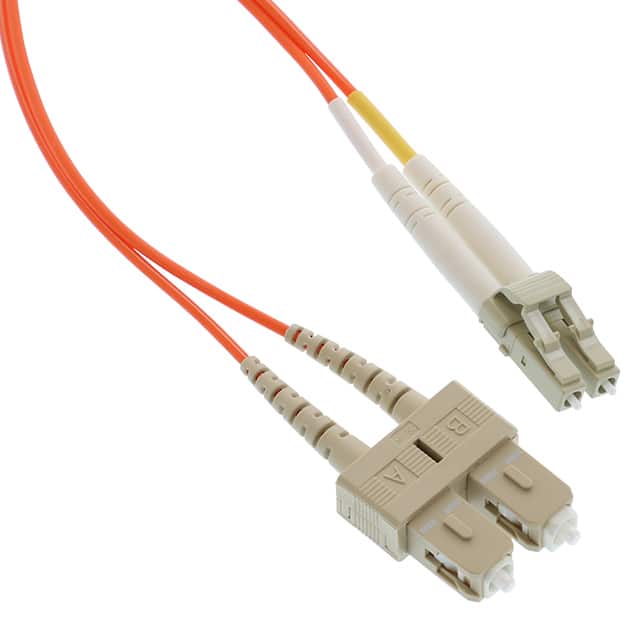

The Tripp Lite N316-03M is a 3-meter (9.8 ft) duplex multimode fiber optic patch cable terminated with LC duplex and SC duplex connectors. It features a 62.5/125 micron core/clad diameter, OM1 optical mode, and a PC endface polish for low insertion loss (0.20 dB typical per connector).
This cable utilizes a zipcord (twin zip) construction with an orange LSZH (low smoke zero halogen) jacket, rated OFNR for riser applications. It is FDDI rated and supports network speeds up to 10 Gbps. The dynamic minimum bend radius is 20 mm and static is 10 mm, allowing flexible routing in tight spaces. Operating temperature range is -20 to 60 °C.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.31 | $22.31 |
| 10+ | $18.96 | $18.96 |
| 25+ | $17.77 | $17.77 |
| 50+ | $16.92 | $16.92 |
| 100+ | $16.12 | $16.12 |
| 250+ | $15.11 | $15.11 |
| 500+ | $14.92 | $14.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-20 to 60 °C (-4 to 140 °F).
Yes, it is RoHS3 compliant as confirmed in the datasheet.
Side A: LC Duplex (male); Side B: SC Duplex (male).
OFNR (riser rated), suitable for vertical runs between floors.
