| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
134 pcs
|
134 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Tape & Reel |

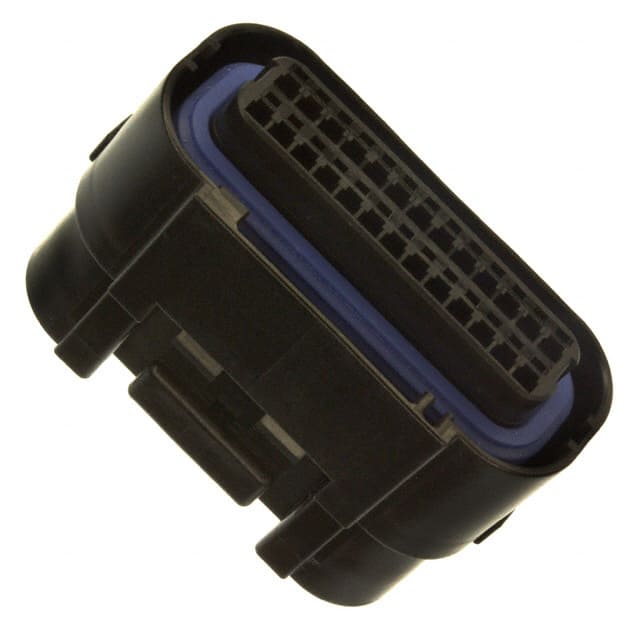

The JAE Electronics MX23A26SF1 is a rectangular connector housing designed for reliable wire-to-wire connections. This receptacle housing accommodates 26 positions arranged in 2 rows with a 2.50mm pitch and 4.40mm row spacing. The housing is black and features a latch lock fastening mechanism for secure mating. It supports crimp termination for female socket contacts, allowing flexible wire harness assembly. The housing is rated for an operating temperature range of -40°C to 125°C and is designed as waterproof, making it suitable for applications requiring environmental sealing. The free hanging (in-line) mounting type enables straightforward integration into cable assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.54 | $8.54 |
| 10+ | $8.03 | $8.03 |
| 25+ | $6.81 | $6.81 |
| 50+ | $6.35 | $6.35 |
| 100+ | $6.05 | $6.05 |
| 250+ | $5.62 | $5.62 |
| 500+ | $5.35 | $5.35 |
| 1,000+ | $5.09 | $5.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MX23A26SF1 has 26 positions arranged in 2 rows.
The pitch is 2.50mm (0.098 inches).
The mounting type is free hanging (in-line).
Yes, the housing features a waterproof design.
The operating temperature range is -40°C to 125°C.
It accepts female socket contacts with crimp termination.
