| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,067 pcs
|
15067 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Industrial Grade | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Package Quantity | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The Texas Instruments MSP430F155IRTDT is a low-power, 16-bit microcontroller based on the MSP430 CPU16 core. It offers 16KB of FLASH program memory and 512B of SRAM, operating at speeds up to 8MHz. This MCU includes a 12-bit Analog-to-Digital Converter with internal reference, sample-and-hold, and autoscan features, as well as dual 12-bit Digital-to-Analog Converters with synchronization.
Key peripherals include a 16-bit Timer_A and Timer_B, an on-chip comparator, and serial communication interfaces supporting I²C, SPI, and UART/USART. It operates within a low supply voltage range of 1.8V to 3.6V and features five power-saving modes, with active mode current consumption as low as 330 µA at 1 MHz and 2.2 V. The device also includes a brownout detector and a bootstrap loader for serial onboard programming.

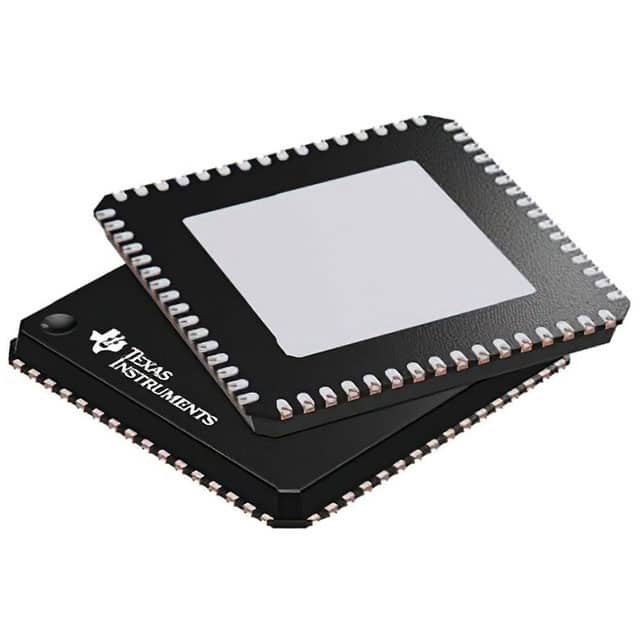

The MSP430F155IRTDT is supplied in a 64-VQFN exposed pad package, suitable for surface mounting. It operates within an industrial temperature range of -40°C to 85°C. The microcontroller is designed for applications requiring low power consumption and integrated analog and digital peripherals.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.76 | $7.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.8V to 3.6V.
It is supplied in a 64-VQFN exposed pad package.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 Compliant.
It has 16KB of FLASH program memory.
The RAM size is 512 x 8.
Key peripherals include a 12-bit ADC, dual 12-bit DACs, DMA, and serial interfaces (I²C, SPI, UART).
